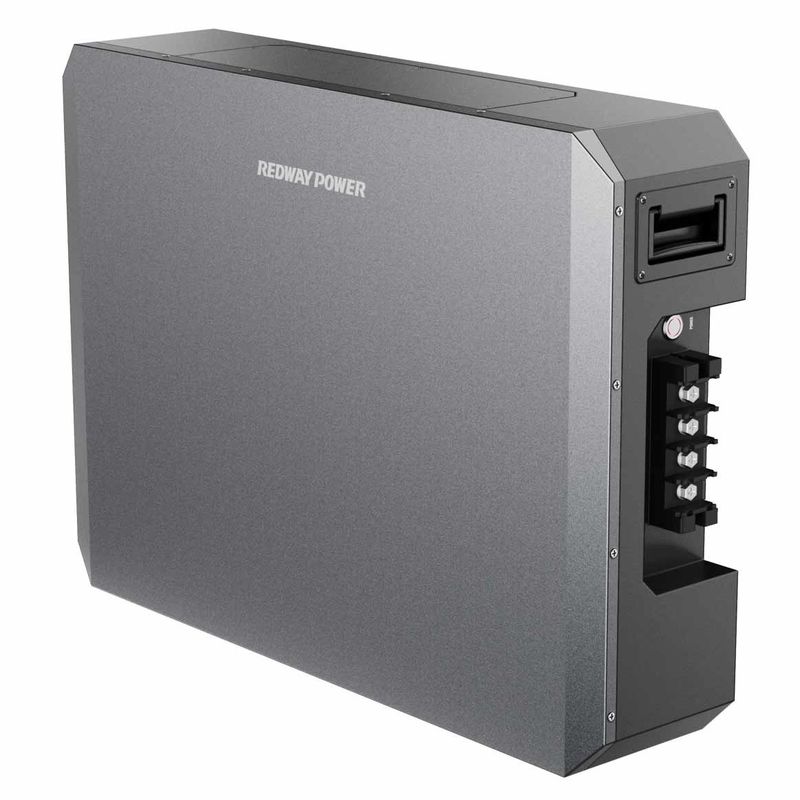

Powerwall Energy Storage Litium Battery 100Ah 16S Lifepo4 Residential Battery Systems

Product Details

Place of Origin: China

Brand Name: Redway

Certification: CE, UL 1642(Cell), IEC 62133, UN38.3, MSDS

Model Number: PW51100-S

Payment & Shipping Terms

Minimum Order Quantity: 1PCS

Packaging Details: Wooden case

Delivery Time: 20Days

Payment Terms: T/T, Western Union, L/C

Supply Ability: 10000PCS/Month

Get Best Price
Highlight:

Powerwall Energy Storage Litium Battery

,

Energy Storage Litium Battery 100Ah

,

16S Lifepo4 Residential Battery Systems

Battery Material:
LiFePO4
Voltage:
51.2V
Capacity:
100Ah
Casing:
Sheet Metal Case
Net Weight:
45Kg
Dimensions:
532*425*170mm
Battery Material:
LiFePO4
Voltage:
51.2V
Capacity:
100Ah
Casing:
Sheet Metal Case
Net Weight:
45Kg
Dimensions:
532*425*170mm
Powerwall Energy Storage Litium Battery 100Ah 16S Lifepo4 Residential Battery Systems



 Energy Storage Lifepo4 Litium Battery 51.2V 100Ah 16S Powerwall Lifepo4 Battery For House Solar System



 Redway Power’s PW51100-S is a powerful and compact power storage wall solution designed to assist homes in achieving energy independence and sustainability. This device, with a capacity of 5.12 kWh, is ideal for storing energy from renewable sources such as solar panels or wind turbines. It’s an excellent choice for homes looking to lower their energy expenses and carbon footprint without breaking the bank.





Main Features



1.Backup Protection: The battery serves as a backup power source, automatically providing energy to your home when the grid goes down. It ensures that your lights stay on and your devices remain charged without the need for fuel, upkeep, or generating noise. This feature is particularly useful during power outages, offering a reliable and uninterrupted power supply.



2.Self-Powered Home: The battery can store the energy generated from solar panels during the day and provide clean energy to your home at night. This feature allows you to utilize the energy you've generated from solar power, reducing reliance on the grid and promoting sustainable energy consumption.



​3.Time-Based Control: If your utility company offers Time-of-Use rates, the battery enables you to take advantage of lower electricity rates during off-peak hours. By using the solar energy you've already generated, you can avoid using grid electricity during more expensive rate periods, helping you save on electricity costs.



4.​Modern and Compact Design: The Power Storage Wall is designed to be aesthetically pleasing and easily blend with different home styles. Its compact, all-in-one construction offers flexibility in mounting options, allowing for installation in both indoor and outdoor spaces. The minimalist design and ease of installation make it a convenient.





Powerwall Energy Storage Litium Battery 100Ah 16S Lifepo4 Residential Battery Systems 0







Cell Type LiFePO4
Nominal Voltage 51.2V
Nominal Capacity 100Ah
Norminal Energy 5.12kWh
Working Voltage 40~58.4V
Dimension (L*W*H) 20.94*16.73*6.69in
532*425*170mm
Net Weight 45kg
Charging Temp.Range 0~55°C
Discharging Temp.Range -20~60°C
Communication CAN/RS485
Design Life 20 Years
Cycle Life(25°C@80%DOD) >6000 Cycles
IP Grade IP21
Color Gray
Warranty Document Supplied Yes
Optional Functions LCD screen, Circuit breaker
Compatible Inverters Victron/SMA/Goodwe/SRNE/Solis/SAJ/Growatt/Luxpower/Voltronic/Deye/etc.
Certification & Safety Standard IEC62619 / CE / UN38.3





Making Better Use of Solar Power

Powerwall Power Storage Battery
51.2V Series



Redway Power™ introduces Power Storage wall series that has applications in both Domestic and Commercial sectors offering backup power to Offices, Homes, Factories, and Businesses. Integrated with latest BMS Technology, our Power Storage wall brings you Safety, Reliability and high performance capability.



Powerwall Energy Storage Litium Battery 100Ah 16S Lifepo4 Residential Battery Systems 1



Powerwall Energy Storage Litium Battery 100Ah 16S Lifepo4 Residential Battery Systems 2







- The Internal Structure -

51.2V100Ah Power Storage Wall
Safety and Long-life



Powerwall Energy Storage Litium Battery 100Ah 16S Lifepo4 Residential Battery Systems 3
