Product Details
Place of Origin: China
Brand Name: Redway
Certification: CE, UL 1642(Cell), IEC 62133, UN38.3, MSDS
Model Number: PW51200-S
Payment & Shipping Terms
Minimum Order Quantity: 1PCS
Packaging Details: Wooden case
Delivery Time: 20Days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10000PCS/Month
Battery Material: |
LiFePO4 |
Voltage: |
51.2V |
Capacity: |
200Ah |
Casing: |
Sheet Metal Case |
Net Weight: |
88Kg |
OEM&ODM: |
Acceptable |
Battery Material: |
LiFePO4 |
Voltage: |
51.2V |
Capacity: |
200Ah |
Casing: |
Sheet Metal Case |
Net Weight: |
88Kg |
OEM&ODM: |
Acceptable |

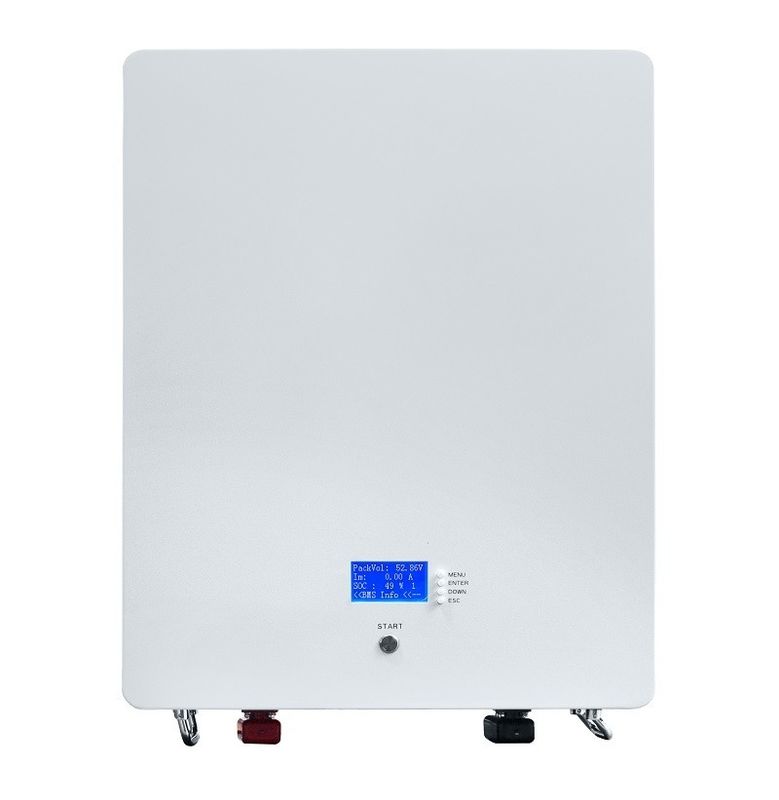

Energy Storage Lifepo4 Litium Battery 16S 200Ah 51.2V Powerwall For House Solar System
Redway Power’s PW51100-S is a powerful and compact power storage wall solution designed to assist homes in achieving energy independence and sustainability. This device, with a capacity of 5.12 kWh, is ideal for storing energy from renewable sources such as solar panels or wind turbines. It’s an excellent choice for homes looking to lower their energy expenses and carbon footprint without breaking the bank.
Main Features
Intelligent Battery Equalization Management
Intelligent Charging / Discharging management
High precision voltage detection
High precision current detection
5-channel battery temperature testing
Software and hardware for protection of over voltage, low voltage , under-voltage, over-current , high/low temperature, short-circuit .
LED and beeping indications showing battery level and faulty alarm.
RS232 communicating port to read the data of SOC and SOH.
RS485 port to monitor the Cascading battery module
Rack-mounted battery shape design is more convenient to install BMS
| Cell Type | LiFePO4 |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 200Ah |
| Norminal Energy | 10.24kWh |
| Working Voltage | 40~58.4V |
| Net Weight | 88kg |
| Charging Temp.Range | 0~55°C |
| Discharging Temp.Range | -20~60°C |
| Communication | CAN/RS485 |
| Design Life | 10 Years |
| Cycle Life(25°C@80%DOD) | >6000 Cycles |
| IP Grade | IP21 |
| Color | White |
| Warranty Document Supplied | Yes |
| Optional Functions | LCD screen, Circuit breaker |
| Compatible Inverters | Victron/SMA/Goodwe/SRNE/Solis/SAJ/Growatt/Luxpower/Voltronic/Deye/etc. |
| Certification & Safety Standard | IEC62619 / CE / UN38.3 |
Why choose us
Safety: Your battery is designed with safety in mind, featuring a built-in smart BMS that ensures the battery's safety and reliability. This is especially important for homeowners who want to ensure their families and property are protected from any potential hazards.
Environmentally friendly: Your battery is designed to be environmentally friendly, producing no pollution or emissions. This is a major selling point for environmentally conscious homeowners who want to reduce their carbon footprint and contribute to a cleaner, healthier environment.
Fast-charging and low self-discharging: Your battery charges quickly and has a low self-discharge rate, making it an excellent choice for homeowners who want a reliable and efficient power source.
100% depth of discharge: Your battery can be fully discharged without causing any damage, making it a great choice for homeowners who want to maximize their energy storage capacity.
Long cycle life: Your battery has a long cycle life of 6000 times or more, making it a reliable choice for homeowners who want a power source that will last for years to come.
Over discharge protection: Your battery features over discharge protection, ensuring that it will not be damaged if it is accidentally discharged beyond its recommended depth. This provides peace of mind for homeowners who want to ensure their battery is protected from accidental damage.
- The Internal Structure -
