Product Details
Place of Origin: China
Brand Name: Redway Power
Certification: CE,UN38.3, MSDS
Model Number: PT 24200
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Packaging Details: Wooden packing, carton packing
Delivery Time: 20Days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10000PCS/Day
Battery Type: |
LiFePO4 |
Norminal Voltage: |
25.6V |
Capacity: |
200Ah |
Power: |
5.12KWh |
Casing: |
Sheet Metal |
Weight: |
46Kg |
Dimensions: |
385*400*295 Mm (15.16*15.75*11.61 Inch) |
OEM&ODM: |
Acceptable |
Battery Type: |
LiFePO4 |
Norminal Voltage: |
25.6V |
Capacity: |
200Ah |
Power: |
5.12KWh |
Casing: |
Sheet Metal |
Weight: |
46Kg |
Dimensions: |
385*400*295 Mm (15.16*15.75*11.61 Inch) |
OEM&ODM: |
Acceptable |

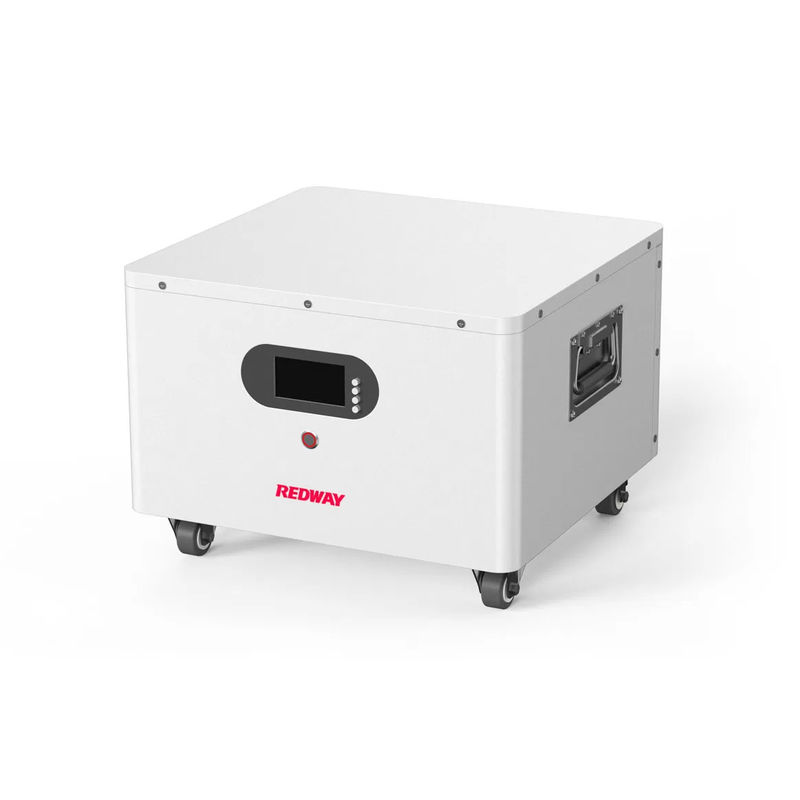

Safe & Reliable 25.6V 200Ah LiFePO4 Battery for Energy Storage
The 25.6V 200Ah 5.12KWh new model home energy storage battery with wheels is a cutting-edge solution designed for convenient energy storage.
Key Specifications
Voltage: This unit operates at a voltage of 25.6 volts, providing the necessary power for a variety of home appliances and systems.
Capacity: With a capacity of 200Ah (ampere-hours), it offers a substantial amount of energy storage. This allows for extended usage periods, reducing the frequency of recharging and ensuring a reliable power supply even during outages.
Energy: The total energy storage capacity is 5.12 kWh (kilowatt-hours). This is a measure of the total amount of energy the battery can store and deliver over time. It's enough to power several home appliances for a substantial period.
New Model Features
This new model comes with several notable features that enhance its overall appeal and functionality.
Mobility: One of the most significant features of this model is the inclusion of wheels. This design innovation makes the battery highly mobile and easy to move around, facilitating hassle-free placement and relocation within your home or property.
Efficiency: The new model is designed with high-efficiency cells that provide excellent energy storage and release capabilities. This ensures optimal performance and longevity.
Durability: The robust construction of this battery ensures it can withstand the rigors of regular use. It is built to last, offering a reliable energy solution for many years.
User-Friendly: It's user-friendly, with a straightforward interface that makes monitoring and managing energy usage simple for homeowners.
In summary, the 25.6V 200Ah 5.12KWh new model home energy storage battery with wheels is a powerful, efficient, and convenient option for those who need a reliable and mobile energy storage solution at home.
| Items | Specification |
|---|---|
| Cell Type | LiFePO4 (Customizable: LiFePO4 / NCM / Prismatic / Cylindrical) |
| Nominal Voltage | 25.6V |
| Battery Capacity | 200Ah |
| Nominal Energy | 5.12kWh (5120Wh) |
| Dimension [L*W*H] | 385*400*295 mm (15.16*15.75*11.61 inch) (Customizable Dimension) |
| Weight | ≈46kg (101.41 lbs) |
| Working Voltage | 20V~29.2V |
| Charge Voltage | 29.2V |
| Discharge Cut-off Voltage | 20V |
| Maximum Charge Current | 200A Continuous |
| Maximum Discharge Current | 200A Continuous |
| Fast Charging | Supports Fast Charging |
| Charging Temperature | 0~55°C (32℉~131℉) |
| Discharging Temperature | -20~60°C (-4℉~140℉) |
| Operating Humidity Range | <30% |
| Series/Parallel Number | 8S1P |
| Max. Parallel Connection | 16 |
| Cycle Life (25°C / 77℉@60% DOD) | >8000 Cycles |
| Cycle Life (25°C / 77℉@80% DOD) | >6000 Cycles |
| Self-Discharge Rate | <3% per month (25°C / 77℉) |
| IP Grade | IP21 (Higher grade optional) |
| Battery Case | Steel |
| Battery Base Wheels | 4 |
| Monitoring & Protection | Smart BMS: Overcharge / OverDischarge / Overcurrent / OverTemperature / ShortCircuit |
| Communication | RS485 / CAN |
| Optional Functions | Bluetooth / WiFi / Circuit Breaker / Heating / Active Balance / LED Touch Screen / APP |
| Accessories | Inverter Power Cable, Parallel Cable, Communication Cable, Grounding Wire |
| Compatible Inverters | Victron / GOODWE / Solis / Growatt / SMA / SAJ / Luxpower / SRNE / Deye / Voltronic, etc. |
| Color | White / Gray / Black |
| Design Life | 20 Years |
| Warranty | 5 Years |
| User Manual | With the Battery Packaging |
| Certification & Safety Standard | UL / FCC / CE / IEC / RoHS / UN38.3 / MSDS |
Advantages of lithium batteries
High energy density - Lithium-ion batteries can store more energy per unit weight and volume compared to other battery technologies.
Long lifespan - Lithium-ion batteries can withstand hundreds to thousands of charge cycles over their lifetime.
No memory effect - Lithium-ion batteries do not require full discharge before recharging like nickel-cadmium batteries.
Low self-discharge - Lithium-ion batteries retain their charge for a long time even when not in use.
Application
Redway Battery specializes in providing a diverse selection of battery sizes and configurations to cater to a wide range of applications. Whether you need standard battery options or have unique power requirements, our team of experienced engineers is here to assist you throughout the entire process of designing, developing, testing, and manufacturing custom battery solutions tailored to your specific needs. Feel free to reach out to us today to learn more about our comprehensive range of battery solutions and how we can create a customized solution for you.
