Product Details
Place of Origin: China
Brand Name: Redway Power
Certification: CE RoHS MSDS
Model Number: PT48200
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Packaging Details: Wooden packing, carton packing
Delivery Time: 20Days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10000PCS/Day
Battery Type: |
LiFePO4 |
Norminal Voltage: |
48V |
Capacity: |
184Ah |
Power: |
8.83kWh |
Casing: |
Sheet Metal Case |
Weight: |
76.5Kg |
Dimensions: |
700*220*458mm |
OEM&ODM: |
Acceptable |
Battery Type: |
LiFePO4 |
Norminal Voltage: |
48V |
Capacity: |
184Ah |
Power: |
8.83kWh |
Casing: |
Sheet Metal Case |
Weight: |
76.5Kg |
Dimensions: |
700*220*458mm |
OEM&ODM: |
Acceptable |
The Redway Power Trolley PT48200 is indeed an innovative battery solution that offers reliable power in a versatile and mobile package. Its features and specifications make it suitable for various applications.

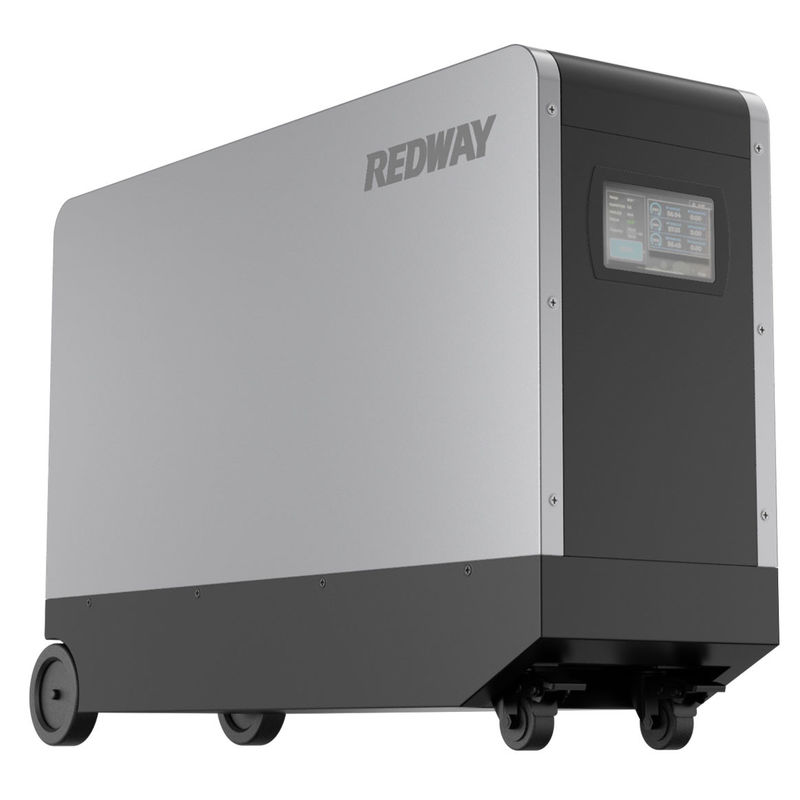

The PT48200 is designed with wheels and a sturdy handle, making it easy to transport from one location to another. This mobility feature allows users to have power on the go, whether it's in different areas of a house or even outdoors.
With a nominal voltage of 48V and a battery capacity of 184Ah, the PT48200 provides an impressive nominal energy output of 9.42kWh. This energy capacity enables it to deliver consistent and reliable power for a variety of applications. It has a discharge current of 180A and a charge current of 180A, further enhancing its versatility.
The battery trolley is equipped with a built-in smart Battery Management System (BMS) that ensures its protection and efficient operation. This system helps monitor and optimize the battery's performance, enhancing its lifespan and overall reliability.
The PT48200 finds applications in various scenarios, including off-grid homes, emergency backup power systems, mobile power solutions, and renewable energy storage systems. Its mobility and versatility make it an ideal choice for those who require dependable and efficient power that can be easily transported.
Furthermore, the PT48200 is compatible with a wide range of inverters, including Growatt, Luxpower, Voltronic, and Deye, among others. This compatibility adds to its flexibility and ease of integration into existing power systems.
Overall, the Power Trolley PT48200 stands out as a powerful and versatile battery solution that provides reliable power in a portable and user-friendly package. Its mobility feature, along with its specifications and certifications, make it a compelling choice for those in need of on-the-go power solutions.
| Cell Type | LiFePO4 |
| Nominal Voltage | 48V |
| Nominal Capacity | 184Ah |
| Norminal Energy | 8.83kWh |
| Working Voltage | 37.5~54.75V |
| Dimension (L*W*H) | 27.56*8.66*18.03in 700*220*458mm |
| Net Weight | 76.5kg |
| Charging Temp.Range | 0~55°C |
| Discharging Temp.Range | -20~60°C |
| Communication | CAN/RS485 |
| Design Life | 20 Years |
| Cycle Life(25°C@80%DOD) | >8000 Cycles |
| IP Grade | IP21 |
| Color | Gray and white |
| Warranty Document Supplied | Yes |
| Optional Functions | LCD screen, Circuit breaker |
| Compatible Inverters | Victron/SMA/Goodwe/SRNE/Solis/SAJ/Growatt/Luxpower/Voltronic/Deye/etc. |
| Certification & Safety Standard | IEC62619 / CE / UN38.3 |
Redway Battery specializes in providing a diverse selection of battery sizes and configurations to cater to a wide range of applications. Whether you need standard battery options or have unique power requirements, our team of experienced engineers is here to assist you throughout the entire process of designing, developing, testing, and manufacturing custom battery solutions tailored to your specific needs. Feel free to reach out to us today to learn more about our comprehensive range of battery solutions and how we can create a customized solution for you.
