Product Details
Place of Origin: China
Brand Name: Redway Power
Certification: CE,UN38.3, MSDS
Model Number: PT 24200
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Packaging Details: Wooden packing, carton packing
Delivery Time: 20Days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10000PCS/Day
Battery Type: |
LiFePO4 |
Norminal Voltage: |
25.6V |
Capacity: |
200Ah |
Power: |
5.12KWh |
Casing: |
Sheet Metal |
Weight: |
46Kg |
Dimensions: |
385*400*295 Mm (15.16*15.75*11.61 Inch) |
OEM&ODM: |
Acceptable |
Battery Type: |
LiFePO4 |
Norminal Voltage: |
25.6V |
Capacity: |
200Ah |
Power: |
5.12KWh |
Casing: |
Sheet Metal |
Weight: |
46Kg |
Dimensions: |
385*400*295 Mm (15.16*15.75*11.61 Inch) |
OEM&ODM: |
Acceptable |

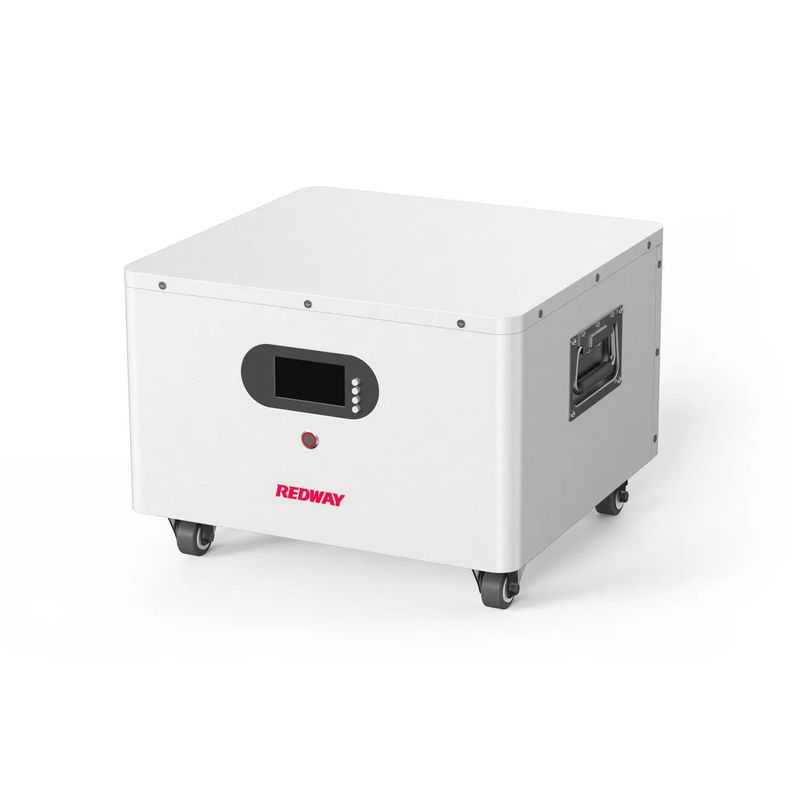

Deep Cycle 25.6V 200Ah LiFePO4 Lithium Battery for Energy Storage Solar Storage
Operating at a voltage of 25.6V, this battery provides a reliable power source for various household applications. The high capacity of 200Ah ensures ample energy storage, allowing homeowners to power their essential appliances and devices during grid outages or peak demand periods.
The built-in intelligent BMS ensures the battery operates within safe limits, preventing overcharging, over-discharging, and other potential risks. This feature promotes longevity and reliability, giving homeowners peace of mind.
Additionally, the communication function enables the battery to interface with home energy management systems or smart devices, allowing for advanced monitoring and control. Homeowners can easily monitor the battery's status, performance, and energy usage, optimizing energy management and maximizing efficiency.
Equipped with wheels, this battery offers portability and easy maneuverability. Homeowners can effortlessly move the battery to desired locations within their homes or even take it on the go for outdoor activities.
Overall, this 25.6V 200Ah lithium battery brings convenience, safety, and intelligent functionality to home energy storage. Its high capacity, built-in protection board, communication capabilities, and portability make it an ideal choice for homeowners seeking a reliable and efficient solution for their energy storage needs.
| Items | Specification |
|---|---|
| Cell Type | LiFePO4 (Customizable: LiFePO4 / NCM / Prismatic / Cylindrical) |
| Nominal Voltage | 25.6V |
| Battery Capacity | 200Ah |
| Nominal Energy | 5.12kWh (5120Wh) |
| Dimension [L*W*H] | 385*400*295 mm (15.16*15.75*11.61 inch) (Customizable Dimension) |
| Weight | ≈46kg (101.41 lbs) |
| Working Voltage | 20V~29.2V |
| Charge Voltage | 29.2V |
| Discharge Cut-off Voltage | 20V |
| Maximum Charge Current | 200A Continuous |
| Maximum Discharge Current | 200A Continuous |
| Fast Charging | Supports Fast Charging |
| Charging Temperature | 0~55°C (32℉~131℉) |
| Discharging Temperature | -20~60°C (-4℉~140℉) |
| Operating Humidity Range | <30% |
| Series/Parallel Number | 8S1P |
| Max. Parallel Connection | 16 |
| Cycle Life (25°C / 77℉@60% DOD) | >8000 Cycles |
| Cycle Life (25°C / 77℉@80% DOD) | >6000 Cycles |
| Self-Discharge Rate | <3% per month (25°C / 77℉) |
| IP Grade | IP21 (Higher grade optional) |
| Battery Case | Steel |
| Battery Base Wheels | 4 |
| Monitoring & Protection | Smart BMS: Overcharge / OverDischarge / Overcurrent / OverTemperature / ShortCircuit |
| Communication | RS485 / CAN |
| Optional Functions | Bluetooth / WiFi / Circuit Breaker / Heating / Active Balance / LED Touch Screen / APP |
| Accessories | Inverter Power Cable, Parallel Cable, Communication Cable, Grounding Wire |
| Compatible Inverters | Victron / GOODWE / Solis / Growatt / SMA / SAJ / Luxpower / SRNE / Deye / Voltronic, etc. |
| Color | White / Gray / Black |
| Design Life | 20 Years |
| Warranty | 5 Years |
| User Manual | With the Battery Packaging |
| Certification & Safety Standard | UL / FCC / CE / IEC / RoHS / UN38.3 / MSDS |
Advantages of lithium batteries
Lightweight - Lithium-ion batteries are relatively light which helps reduce the overall weight of devices.
No maintenance required - Lithium-ion batteries do not require specialized equipment for charging or maintenance.
High voltage - Lithium-ion batteries provide high operating voltage which helps power demanding devices.
Wide temperature range - Lithium-ion batteries can operate and be stored in a wide range of temperatures.
Application
Backup power - Provide electricity during outages.
Self consumption - Use solar power generated on-site.
Time-of-use - Shift loads to cheaper grid/solar periods.
Renewable integration - Absorb excess wind/solar output.
Electric vehicles - Vehicle-to-home/grid applications.
Microgrids - Power small communities off-grid.
Redway Battery specializes in providing a diverse selection of battery sizes and configurations to cater to a wide range of applications. Whether you need standard battery options or have unique power requirements, our team of experienced engineers is here to assist you throughout the entire process of designing, developing, testing, and manufacturing custom battery solutions tailored to your specific needs. Feel free to reach out to us today to learn more about our comprehensive range of battery solutions and how we can create a customized solution for you.
