Product Details
Place of Origin: China
Brand Name: Redway
Certification: CE, UL 1642(Cell), IEC 62133, UN38.3, MSDS
Model Number: PW51100-S
Payment & Shipping Terms
Minimum Order Quantity: 1PCS
Packaging Details: Wooden case
Delivery Time: 20Days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10000PCS/Month
Battery Material: |
LiFePO4 |
Voltage: |
51.2V |
Capacity: |
100Ah |
Casing: |
Sheet Metal Case |
Net Weight: |
45Kg |
Dimensions: |
532*425*170mm |
Battery Material: |
LiFePO4 |
Voltage: |
51.2V |
Capacity: |
100Ah |
Casing: |
Sheet Metal Case |
Net Weight: |
45Kg |
Dimensions: |
532*425*170mm |

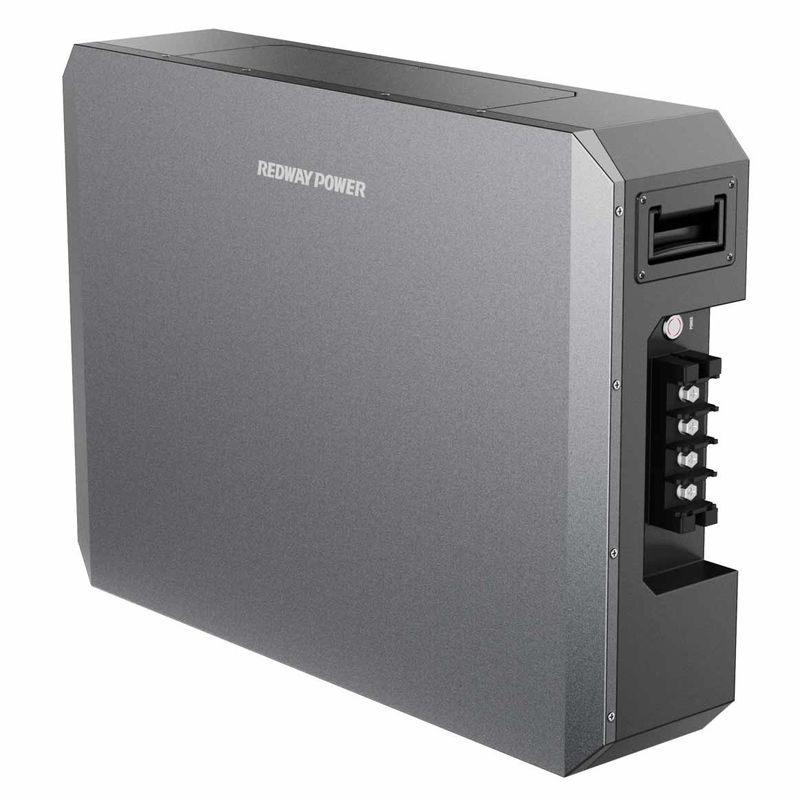

Energy Storage Lifepo4 Litium Battery 51.2V 100Ah 16S Powerwall For House Solar System
Redway Power’s PW51100-S is a powerful and compact power storage wall solution designed to assist homes in achieving energy independence and sustainability. This device, with a capacity of 5.12 kWh, is ideal for storing energy from renewable sources such as solar panels or wind turbines. It’s an excellent choice for homes looking to lower their energy expenses and carbon footprint without breaking the bank.
Main Features
● Backup Protection
Power storage wall is a battery that stores energy, detects outages and automatically becomes your home’s energy source when the grid goes down. Unlike gasoline generators, Power storage wall keeps your lights on and phones charged without upkeep, fuel or noise. Pair with solar and recharge with sunlight to keep your appliances running for days.
● Self-Powered Home
At night, the battery can provide your home with clean energy that you’ve generated from solar during the day.
● Time-Based Control
If your utility offers Time-of-Use rates, you can use less expensive solar energy you’ve already generated to avoid electrical charges during more expensive rate periods.
● Modern and Compact
With easy installation and a minimalist design, Power Storage Wall complements a variety of home styles. The compact, all-in-one construction features versatile mounting options for indoor or outdoor spaces.
Why Choose Us
1. For Batteries LFP Prismatic cells , 5000+ cycles Series type Support 4S4P , Parallel type support max 4P.
2. 3 Years Warranty
if there is broken item under DDP or non-human damages quality problem within warranty time, we will offer free replacements or refund, up to your needs.
3. For after sales Free mantenance , Free repair , Free replacement if can't repair during Warranty.
4. For customize needs we can customize for you , such Voltage , Capacity , discharge current etc.
5. For additional benefits For resellers we provide super price for you and policy, pls contact us if interest!
| Cell Type | LiFePO4 |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Norminal Energy | 5.12kWh |
| Working Voltage | 40~58.4V |
| Dimension (L*W*H) | 20.94*16.73*6.69in 532*425*170mm |
| Net Weight | 45kg |
| Charging Temp.Range | 0~55°C |
| Discharging Temp.Range | -20~60°C |
| Communication | CAN/RS485 |
| Design Life | 20 Years |
| Cycle Life(25°C@80%DOD) | >6000 Cycles |
| IP Grade | IP21 |
| Color | Gray |
| Warranty Document Supplied | Yes |
| Optional Functions | LCD screen, Circuit breaker |
| Compatible Inverters | Victron/SMA/Goodwe/SRNE/Solis/SAJ/Growatt/Luxpower/Voltronic/Deye/etc. |
| Certification & Safety Standard | IEC62619 / CE / UN38.3 |
- The Internal Structure -
FAQ
Q1: Are your factory or trading company?
A1: We are proffesional lithium-ion batteries manufacturer with our own factory and brand more than 10 Years! We have Strong technical team that all from China top 3 companies.OEM/ODM welcome!
Q2: Can I get a free sample?
A2: Generally we don't provide free sample, but we can return sample cost when our customers place bulk order.
Q3:What's the Warranty of the Battery?
A3:3-5 Years depend on different model.
