Product Details
Place of Origin: China
Brand Name: Redway
Certification: CE, UL 1642(Cell), IEC 62133, UN38.3, MSDS
Model Number: RW12150
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Packaging Details: Wooden case
Delivery Time: 15Days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100000PCS/Day
Battery Type: |
LiFePO4 |
Norminal Voltage: |
12.8V |
Capacity: |
150Ah |
Power: |
1920Wh |
Casing: |
ABS |
Weight: |
19Kg |
Dimensions: |
395*110*286mm |
OEM&ODM: |
Acceptable |
Battery Type: |
LiFePO4 |
Norminal Voltage: |
12.8V |
Capacity: |
150Ah |
Power: |
1920Wh |
Casing: |
ABS |
Weight: |
19Kg |
Dimensions: |
395*110*286mm |
OEM&ODM: |
Acceptable |
Product Description

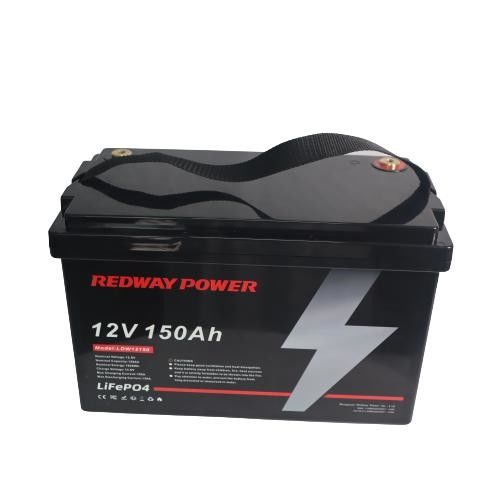

High Quality Deep Cycle 12V 150Ah Lithium Solar Power Battery
Features
Compact appearance
Protection grade: IP65
It can directly replace lead-acid battery
Customizable shell material
Simple black style, now the most popular appearance
The service life is more than 5 times that of lead-acid battery
Product advantages
Lithium Iron Phosphate (LiFePO4) Technology: The product utilizes lithium iron phosphate cells, known for their superior safety and long cycle life. These batteries can withstand thousands of cycles and can be discharged up to 100% of their capacity under normal conditions.
Automatic Protection Features: The battery has built-in automatic protection mechanisms for overcharging, overdischarging, overcurrent, and over-temperature. These protections help ensure the safety and longevity of the battery.
Maintenance-Free: The battery is maintenance-free, eliminating the need for regular maintenance tasks such as checking electrolyte levels or adding water.
Internal Cell Balancing: The product incorporates internal cell balancing, which helps equalize the charge levels of individual cells within the battery pack. This promotes better overall battery performance and extends the battery's lifespan.
Lighter Weight: The lithium iron phosphate battery weighs approximately 40% to 50% less than a comparable lead-acid battery. This lighter weight makes it easier to handle and install, reducing the overall weight of the system.
Compatibility with Lead-Acid Chargers: The battery can be charged using most standard lead-acid chargers. This compatibility provides flexibility and convenience, as existing charging infrastructure can be used without the need for additional equipment.
Wide Temperature Range: The battery operates within a wider temperature range, from -20°C to 60°C, allowing for reliable performance even in extreme environments.
Series and Parallel Application Support: The product supports series application expansion, allowing multiple batteries to be connected in series, increasing the overall voltage (up to 51.2V). It also supports parallel connection of two batteries, increasing the overall capacity and providing redundancy if needed.
| Cell Type: | LiFePO4 (LFP) |
| Nominal Voltage: | 12.8V |
| Nominal Capacity: | 150Ah |
| Norminal Energy: | 1920Wh |
| Dimension (L*W*H): | 395*110*286mm |
| Series / Parallel Number: | 4S1P |
| Maximum Charge Current: | 50A |
| Maximum Discharge Current: | 100A |
| Charge Voltage / Charge Cut-off Voltage |
14.6V |
| Discharge Cut-off Voltage | 10V |
| Terminal | M8 |
| Cycle Life (25°C@80% DOD) | 6000 Cycles |
| Operating Temperature and Humidity Range | Charge: 0~55°C Discharge: -20~60°C |
| Max. Parallel Connection | 4 |
| Protection Level | IP66 |
| Optional Functions: With Bluetooth / Communication / Heating / Active Balance / Switch / LED Screen |
With Bluetooth / Communication / Heating / Active Balance / Switch / LED Screen |
| Warranty: | 3 Years |
Redway Battery specializes in providing a diverse selection of battery sizes and configurations to cater to a wide range of applications. Whether you need standard battery options or have unique power requirements, our team of experienced engineers is here to assist you throughout the entire process of designing, developing, testing, and manufacturing custom battery solutions tailored to your specific needs. Feel free to reach out to us today to learn more about our comprehensive range of battery solutions and how we can create a customized solution for you.
