Product Details
Place of Origin: China
Brand Name: Redway Power
Certification: CE,UN38.3, MSDS
Model Number: PT 24184
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Packaging Details: Wooden packing, carton packing
Delivery Time: 20Days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10000PCS/Day
Battery Type: |
LiFePO4 |
Norminal Voltage: |
25.6V |
Capacity: |
184Ah |
Power: |
4.71KWh |
Casing: |
Sheet Metal |
Weight: |
40Kg |
Dimensions: |
715*220*302 Mm (28.15*8.66*11.89 Inch) |
OEM&ODM: |
Acceptable |
Battery Type: |
LiFePO4 |
Norminal Voltage: |
25.6V |
Capacity: |
184Ah |
Power: |
4.71KWh |
Casing: |
Sheet Metal |
Weight: |
40Kg |
Dimensions: |
715*220*302 Mm (28.15*8.66*11.89 Inch) |
OEM&ODM: |
Acceptable |

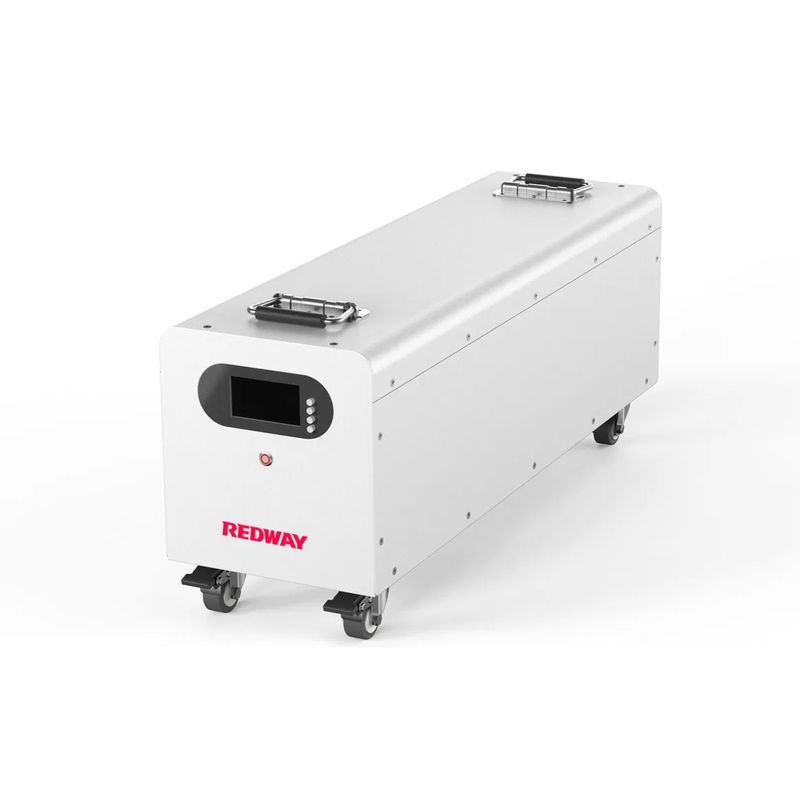

Power Storage Lithium Battery 24V 184Ah for home energy storage
Features
Lithium-ion Technology: The battery utilizes lithium-ion technology, which offers high energy density, long cycle life, and low self-discharge rates. Lithium-ion batteries are known for their efficiency and reliability, making them a popular choice for energy storage applications.
Home Energy Storage: This battery is specifically designed for home energy storage systems. It can be used to store excess energy generated from renewable sources during off-peak periods and discharge it when needed, reducing reliance on the grid and optimizing energy usage.
Safety Features: The Power Storage Lithium Battery is equipped with built-in safety features to protect against overcharging, over-discharging, and short circuits. These safety mechanisms ensure safe and reliable operation of the battery in a home environment.
Scalability: The battery's modular design allows for easy scalability, meaning multiple batteries can be connected in parallel to increase the overall capacity and energy storage capability of the system.
Long Service Life: Lithium-ion batteries typically have a long service life, and with proper maintenance and care, this battery can provide reliable performance over an extended period.
| Items | Specification |
|---|---|
| Cell Type | LiFePO4 (Customizable: LiFePO4 / NCM / Prismatic / Cylindrical) |
| Nominal Voltage | 25.6V |
| Battery Capacity | 184Ah |
| Nominal Energy | 4.71kWh (4710.4Wh) |
| Dimension [L*W*H] | 715*220*302 mm (28.15*8.66*11.89 inch) (Customizable Dimension) |
| Weight | ≈40kg (88.18 lbs) |
| Working Voltage | 20V~29.2V |
| Charge Voltage | 29.2V |
| Discharge Cut-off Voltage | 20V |
| Maximum Charge Current | 180A Continuous |
| Maximum Discharge Current | 180A Continuous |
| Fast Charging | Supports Fast Charging |
| Charging Temperature | 0~55°C (32℉~131℉) |
| Discharging Temperature | -20~60°C (-4℉~140℉) |
| Operating Humidity Range | <30% |
| Series/Parallel Number | 8S1P |
| Max. Parallel Connection | 16 |
| Cycle Life (25°C / 77℉@60% DOD) | >8000 Cycles |
| Cycle Life (25°C / 77℉@80% DOD) | >6000 Cycles |
| Self-Discharge Rate | <3% per month (25°C / 77℉) |
| IP Grade | IP21 (Higher grade optional) |
| Battery Case | Steel |
| Battery Base Wheels | 4 |
| Monitoring & Protection | Smart BMS: Overcharge / OverDischarge / Overcurrent / OverTemperature / ShortCircuit |
| Communication | RS485 / CAN |
| Optional Functions | Bluetooth / WiFi / Circuit Breaker / Heating / Active Balance / LED Touch Screen / APP |
| Accessories | Inverter Power Cable, Parallel Cable, Communication Cable, Grounding Wire |
| Compatible Inverters | Victron / GOODWE / Solis / Growatt / SMA / SAJ / Luxpower / SRNE / Deye / Voltronic, etc. |
| Color | White / Gray / Black |
| Design Life | 20 Years |
| Warranty | 5 Years |
| User Manual | With the Battery Packaging |
| Certification & Safety Standard | UL / FCC / CE / IEC / RoHS / UN38.3 / MSDS |
Advantages of lithium batteries over lead-acid batteries
Low self-discharge rate: Lithium batteries have a low self-discharge rate, meaning they can hold a charge for longer durations without frequent recharging.
Environmentally friendly: Lithium batteries do not contain harmful heavy metals like lead, unlike lead-acid batteries, which require special handling and recycling.
No memory effect: Lithium batteries do not exhibit a memory effect, allowing for charging at any time without needing to fully discharge them.
Higher operating voltage: Lithium batteries typically have a higher operating voltage, which better suits high-power devices' requirements.
Application
Redway Battery specializes in providing a diverse selection of battery sizes and configurations to cater to a wide range of applications. Whether you need standard battery options or have unique power requirements, our team of experienced engineers is here to assist you throughout the entire process of designing, developing, testing, and manufacturing custom battery solutions tailored to your specific needs. Feel free to reach out to us today to learn more about our comprehensive range of battery solutions and how we can create a customized solution for you.
