Product Details
Place of Origin: China
Brand Name: Redway Power
Certification: CE RoHS MSDS
Model Number: PT51200
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Packaging Details: Wooden packing, carton packing
Delivery Time: 20Days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10000PCS/Day
Battery Type: |
LiFePO4 |
Norminal Voltage: |
51.2V |
Capacity: |
184Ah |
Power: |
9.42kWh |
Casing: |
Sheet Metal Case |
Weight: |
80Kg |
Dimensions: |
700*220*458mm |
OEM&ODM: |
Acceptable |
Battery Type: |
LiFePO4 |
Norminal Voltage: |
51.2V |
Capacity: |
184Ah |
Power: |
9.42kWh |
Casing: |
Sheet Metal Case |
Weight: |
80Kg |
Dimensions: |
700*220*458mm |
OEM&ODM: |
Acceptable |

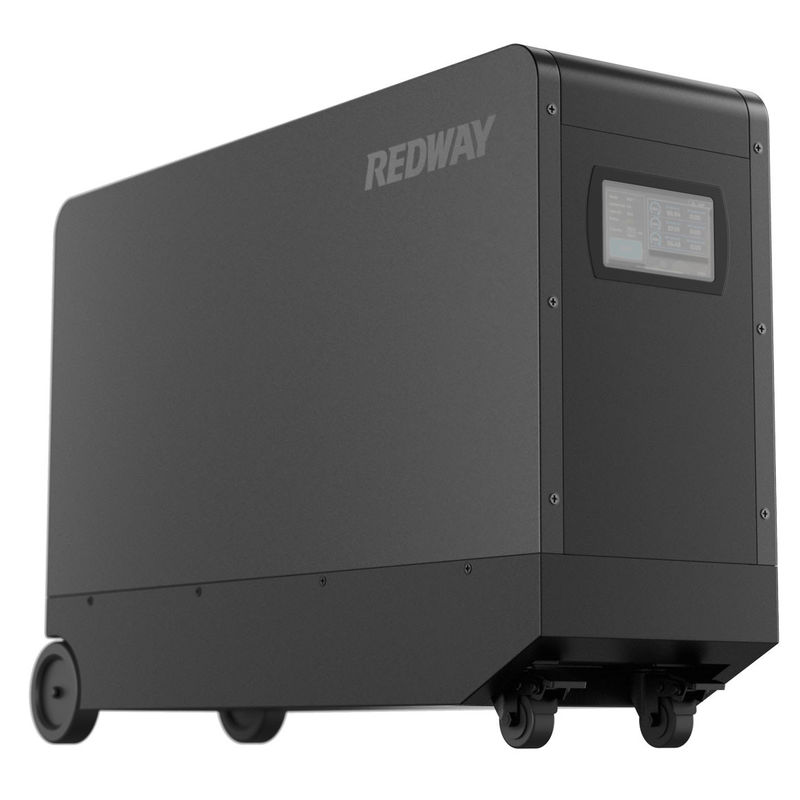

Redway Power's Power Trolley PT51200 is an innovative and versatile battery solution that provides reliable power in a mobile package. It is designed with wheels and a sturdy handle for easy transportation between locations. The PT51200 offers a long lifespan, high battery capacity, compact design, built-in protection and monitoring features, and compatibility with top inverter brands. These advantages make it an excellent choice for those seeking a reliable and efficient power source for their home.
Key Features:
Ideal for Solar/Renewable or UPS Energy Storage: The Power Trolley PT51200 is specifically designed to meet the energy storage needs of solar and renewable energy systems, as well as UPS (Uninterruptible Power Supply) applications.
Safe, Stable, and Environmentally Friendly: The battery trolley is built with safety and stability in mind, utilizing environmentally friendly materials and technologies.
Long Cycle Life: The PT51200 has a design life of over 15 years, ensuring long-term durability and performance.
80% Depth of Discharge (DOD): The battery can be discharged up to 80% of its capacity, providing ample power for various applications.
Constant Power Output: The PT51200 delivers a constant power output, ensuring stable and reliable performance.
Low Self-Discharge: The battery has a low self-discharge rate, allowing for extended periods of storage without significant power loss.
Fast Charging: The PT51200 supports fast charging, minimizing downtime and maximizing efficiency.
Low Maintenance: The battery trolley requires minimal maintenance, reducing the need for regular upkeep.
Intelligent Battery Management System: It is equipped with an intelligent battery management system that monitors and protects the battery, optimizing its performance and lifespan.
5-Year Warranty: Redway Power provides a 5-year warranty, ensuring peace of mind and long-term investment protection.
| Cell Type | LiFePO4 |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 184Ah |
| Norminal Energy | 9.42kWh |
| Working Voltage | 40~58.4V |
| Dimension (L*W*H) | 27.56*8.66*18.03in 700*220*458mm |
| Net Weight | 80kg |
| Charging Temp.Range | 0~55°C |
| Discharging Temp.Range | -20~60°C |
| Communication | CAN/RS485 |
| Design Life | 20 Years |
| Cycle Life(25°C@80%DOD) | >8000 Cycles |
| IP Grade | IP21 |
| Color | Gray and white |
| Warranty Document Supplied | Yes |
| Optional Functions | LCD screen, Circuit breaker |
| Compatible Inverters | Victron/SMA/Goodwe/SRNE/Solis/SAJ/Growatt/Luxpower/Voltronic/Deye/etc. |
| Certification & Safety Standard | IEC62619 / CE / UN38.3 |
Redway Battery specializes in providing a diverse selection of battery sizes and configurations to cater to a wide range of applications. Whether you need standard battery options or have unique power requirements, our team of experienced engineers is here to assist you throughout the entire process of designing, developing, testing, and manufacturing custom battery solutions tailored to your specific needs. Feel free to reach out to us today to learn more about our comprehensive range of battery solutions and how we can create a customized solution for you.
