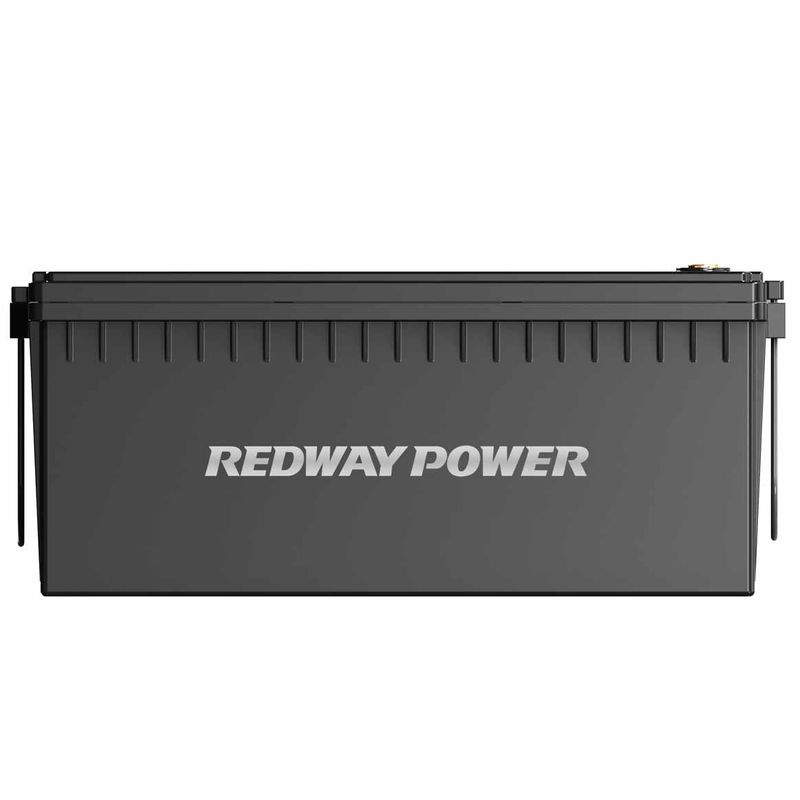

5KWH 24V 200AH Lithium Battery Residential Solar Power Battery Storage

Product Details

Place of Origin: China

Brand Name: Redway

Certification: CE RoHS MSDS

Model Number: RP24200

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Packaging Details: Wooden packing, carton packing

Delivery Time: 15Days

Payment Terms: T/T, Western Union, L/C

Supply Ability: 10000PCS/Day

Get Best Price
Highlight:

24V 200AH Lithium Battery Residential

,

5KWH 24V 200AH Lithium Battery

,

5KWH Residential Solar Power Battery Storage

Battery Type:
LiFePO4
Norminal Voltage:
25.6V
Capacity:
200Ah
Power:
5.12kWh
Casing:
Sheet Metal Case
Weight:
38Kg
Dimensions:
523*269*218mm
OEM&ODM:
Acceptable
Battery Type:
LiFePO4
Norminal Voltage:
25.6V
Capacity:
200Ah
Power:
5.12kWh
Casing:
Sheet Metal Case
Weight:
38Kg
Dimensions:
523*269*218mm
OEM&ODM:
Acceptable
5KWH 24V 200AH Lithium Battery Residential Solar Power Battery Storage

   Product Description

24V 200AH 5KWH for back up Solar power system Lifepo4 Lithium battery



Extreme Vibration Resistance, Longer Service Life, Superior Design & Quality – Manufactured to Quality Assurance Standard ISO 9001, Flame Retardant ABS Plastic. When Failure is not an option – Use Redway Power Lithium Ion Marine Batteries.Redway Power Lithium Ion Marine Batteries are exceptionally beneficial in weight, performance, reliability and service life compared to that of traditional lead-acid batteries and many other lithium battery brands.





Features



◆ Using the technology of lithium iron phosphate cell, superior safety, thousands of cycles, 100%DOD, under normal conditions.


◆Built-in automatic protection for over-charge, over discharge, over current and over temperature.


◆ Free of maintenance


◆Internal cell balancing.


◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.


◆ Can be charged using most standard lead-acid charges (set).


◆ Wider temperature range:-20℃~60℃.





Cell Type: LiFePO4
Nominal Voltage: 25.6V
Nominal Capacity: 200Ah
Norminal Energy: 5120Wh
Dimension (L*W*H): 20.59*10.59*8.58in
523*269*218mm
Series / Parallel Number: 8S2P
Maximum Charge Current: 100A
Maximum Discharge Current: 198A
Charge Voltage /
Charge Cut-off Voltage
29.2V
Discharge Cut-off Voltage 20V
Terminal M8
Cycle Life (25°C@80% DOD) 6000 Cycles
Operating Temperature and Humidity Range Charge: 0~55°C
Discharge: -20~60°C
Max. Parallel Connection 4
Protection Level IP66
Optional Functions:
With Bluetooth / Communication / Heating /
Active Balance / Switch / LED Screen
With Bluetooth / Communication / Heating / Active Balance / Switch / LED Screen
Warranty:

5 Years



Advantages:

1. High Energy Density: Because our LiFePO4 battery has a high energy density, it can store more power in a smaller package. As a result, it is suited for use in applications with limited space, such as RVs, boats, and off-grid power systems.



2. Extended Lifespan: Our LiFePO4 battery has a lifespan that is up to ten times that of standard lead-acid batteries. This means you won’t have to replace your battery as frequently, which will save you money in the long term.
Quick Charging: Our LiFePO4 battery charges quickly, usually in a few hours. This means you can resume utilizing your power system sooner rather than later without having to wait for your battery to charge.



3. Low Self-Discharge Rate: Because our LiFePO4 battery has a low self-discharge rate, it can keep its charge for an extended period of time even while not in use. This makes it excellent for use in standby power systems, where stable power on demand is required.



Our LiFePO4 battery is designed to be safe and dependable, with built-in safety against overcharging, short-circuiting, and overheating. As a result, you can use it with confidence, knowing that your power system is safe.



5KWH 24V 200AH  Lithium Battery Residential Solar Power Battery Storage 05KWH 24V 200AH  Lithium Battery Residential Solar Power Battery Storage 1









5KWH 24V 200AH  Lithium Battery Residential Solar Power Battery Storage 2



CUSTOM BATTERY SOLUTIONS




Redway Battery specializes in providing a diverse selection of battery sizes and configurations to cater to a wide range of applications. Whether you need standard battery options or have unique power requirements, our team of experienced engineers is here to assist you throughout the entire process of designing, developing, testing, and manufacturing custom battery solutions tailored to your specific needs. Feel free to reach out to us today to learn more about our comprehensive range of battery solutions and how we can create a customized solution for you.

5KWH 24V 200AH  Lithium Battery Residential Solar Power Battery Storage 3





5KWH 24V 200AH  Lithium Battery Residential Solar Power Battery Storage 4








All Redway Products Come with:

5KWH 24V 200AH  Lithium Battery Residential Solar Power Battery Storage 5



REDWAY PROMISE

       5KWH 24V 200AH  Lithium Battery Residential Solar Power Battery Storage 6                         5KWH 24V 200AH  Lithium Battery Residential Solar Power Battery Storage 7                            5KWH 24V 200AH  Lithium Battery Residential Solar Power Battery Storage 8
           6000 TIMES CYCLES          ISO9001,ISO14001, OHSAS18001,             EXW, FOB, DAP,DDP
           3 YEARS WARRANTY          CE, CB, UL, KC, FCC, BIS, IEC62133.              T/T, L/C OPTIONAL
