Product Details
Place of Origin: China
Brand Name: Redway
Certification: CE RoHS MSDS
Model Number: RP24100
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Packaging Details: Wooden packing, carton packing
Delivery Time: 15Days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10000PCS/Day
Battery Type: |
LiFePO4 |
Norminal Voltage: |
25.6V |
Capacity: |
100Ah |
Power: |
2.56kWh |
Casing: |
Sheet Metal Case |
Weight: |
20Kg |
Dimensions: |
483*170*240mm |
OEM&ODM: |
Acceptable |
Battery Type: |
LiFePO4 |
Norminal Voltage: |
25.6V |
Capacity: |
100Ah |
Power: |
2.56kWh |
Casing: |
Sheet Metal Case |
Weight: |
20Kg |
Dimensions: |
483*170*240mm |
OEM&ODM: |
Acceptable |

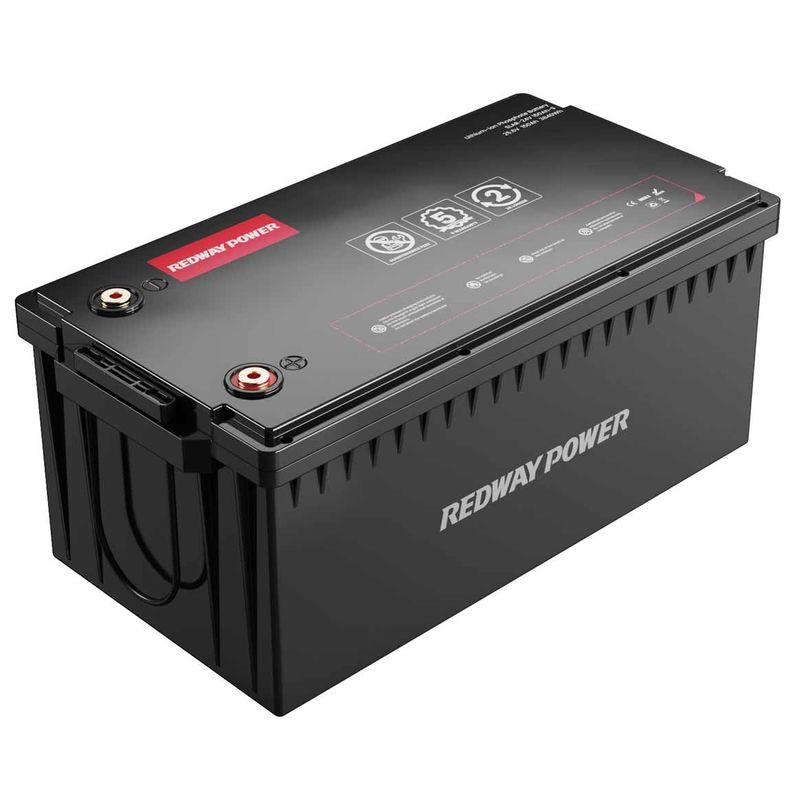

Redway Power is pleased to present its 24V100Ah LiFePO4 battery, a high-performance power storage option that outperforms standard lead-acid batteries in terms of dependability, safety, and longevity. Our LiFePO4 battery is an excellent solution for a variety of applications, such as solar power systems, electric vehicles, and backup power systems. Here, we will go through the numerous advantages and characteristics of our 24V100Ah LiFePO4 Battery.
Advantages:
Our 24V100Ah LiFePO4 Battery has several advantages over standard lead-acid batteries, including the following:
1. High Energy Density: As compared to lead-acid batteries, our LiFePO4 battery has a high energy density, which means it can store more energy in a smaller and lighter battery.
2. Extended Lifespan: With proper care and maintenance, our LiFePO4 battery up to ten years. This lifespan is far longer than that of most lead-acid batteries, which must be changed more frequently.
Charges faster than lead-acid batteries: making our LiFePO4 battery a more convenient and efficient solution for many applications.
3. High Discharge Rate: Because our LiFePO4 battery can manage high discharge rates, it is suited for high-power applications such as electric vehicles.
Unlike lead-acid batteries, our LiFePO4 battery does not contain poisonous ingredients and does not emit harmful fumes. This makes both people and the environment safer.
| Cell Type: | LiFePO4 |
| Nominal Voltage: | 25.6V |
| Nominal Capacity: | 100Ah |
| Norminal Energy: | 2560Wh |
| Dimension (L*W*H) | 483*170*240mm |
| Series / Parallel Number: | 8S7P |
| Maximum Charge Current: | 50A |
| Maximum Discharge Current: | 100A |
| Charge Voltage / Charge Cut-off Voltage |
29.2V |
| Discharge Cut-off Voltage | 20V |
| Terminal | M8 |
| Cycle Life (25°C@80% DOD) | 6000 Cycles |
| Operating Temperature and Humidity Range | Charge: 0~55°C Discharge: -20~65°C |
| Max. Parallel Connection | 4 |
| Protection Level | IP66 |
| Optional Functions: With Bluetooth / Communication / Heating / Active Balance / Switch / LED Screen |
With Bluetooth / Communication / Heating / Active Balance / Switch / LED Screen |
| Warranty: | 3 Years |
Redway Battery specializes in providing a diverse selection of battery sizes and configurations to cater to a wide range of applications. Whether you need standard battery options or have unique power requirements, our team of experienced engineers is here to assist you throughout the entire process of designing, developing, testing, and manufacturing custom battery solutions tailored to your specific needs. Feel free to reach out to us today to learn more about our comprehensive range of battery solutions and how we can create a customized solution for you.
