Product Details
Place of Origin: China
Brand Name: Redway
Certification: CE RoHS MSDS
Model Number: PW51100-F
Payment & Shipping Terms
Minimum Order Quantity: 10pc
Packaging Details: Wooden packing, carton packing
Delivery Time: 20Days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10000PCS/Day
Battery Type: |
LiFePO4 |
Norminal Voltage: |
51.2V |
Capacity: |
100Ah |
Power: |
5.12kWh |
Casing: |
Sheet Metal Case |
Weight: |
46Kg |
Dimensions: |
580*430*155mm |
OEM&ODM: |
Acceptable |
Battery Type: |
LiFePO4 |
Norminal Voltage: |
51.2V |
Capacity: |
100Ah |
Power: |
5.12kWh |
Casing: |
Sheet Metal Case |
Weight: |
46Kg |
Dimensions: |
580*430*155mm |
OEM&ODM: |
Acceptable |

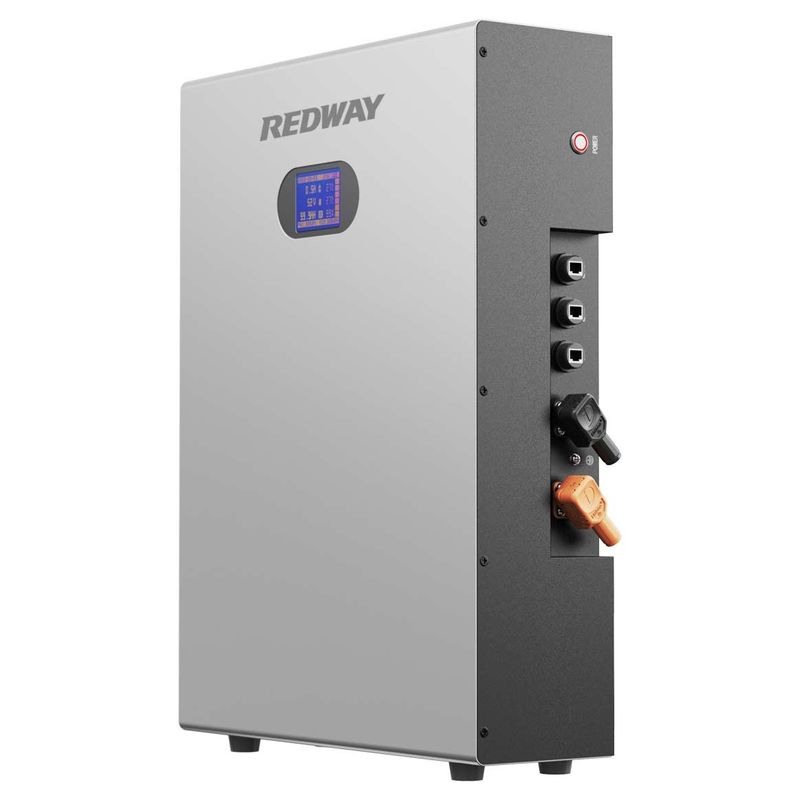

Redway Power’s PW51100-F is a powerful and compact power storage wall solution designed to assist homes in achieving energy independence and sustainability. This device, with a capacity of 5.1 kWh, is ideal for storing energy from renewable sources such as solar panels or wind turbines. It’s an excellent choice for homes looking to lower their energy expenses and carbon footprint without breaking the bank.
One of the key features of the PW51100-F Power Storage Wall is its IP65 rating. This means that the battery is dust-tight and protected against low-pressure water jets from any direction. This level of protection ensures that the battery is suitable for use in a wide range of outdoor environments, including harsh and unpredictable weather conditions.
The IP65 rating is particularly important for those using the PW51100-F as part of a solar power system. In many cases, solar panels are installed outdoors to capture the maximum amount of sunlight, and the Power Storage Wall is used to store the energy generated by the panels. The IP65 rating on the PW51100-F means that the battery can be safely installed outdoors without the risk of damage from water or dust.
In addition to the IP65 rating, the PW51100-F has several other features that make it an excellent choice for power storage in residential and commercial settings. It has a large capacity of 5.1kWh, which means it can store a significant amount of energy for use during peak periods. It also has a high charge and discharge rate, allowing it to quickly and efficiently store and release energy as needed.
The PW51100-F is also easy to install and operate, thanks to its user-friendly interface and simple wiring system. It can be configured to work with a wide range of inverters and solar panels, making it a versatile option for many different applications.
Overall, the PW51100-F Power Storage Wall from Redway Power is an excellent choice for anyone looking to store energy from a solar power system. With its IP65 rating, large capacity, and fast charge and discharge rate, it offers reliable and efficient power storage in a wide range of settings.
| Cell Type | LiFePO4 |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Norminal Energy | 5.12kWh |
| Working Voltage | 40~58.4V |
| Dimension (L*W*H) | 22.83*16.93*6.10in 580*430*155mm |
| Net Weight | 46kg |
| Charging Temp.Range | 0~55°C |
| Discharging Temp.Range | -20~60°C |
| Communication | CAN/RS485 |
| Design Life | 20 Years |
| Cycle Life(25°C@80%DOD) | >6000 Cycles |
| IP Grade | IP65 |
| Color | Gray and white |
| Warranty Document Supplied | Yes |
| Optional Functions | LCD screen, Circuit breaker |
| Compatible Inverters | Victron/SMA/Goodwe/SRNE/Solis/SAJ/Growatt/Luxpower/Voltronic/Deye/etc. |
| Certification & Safety Standard | IEC62619 / CE / UN38.3 |
Redway Battery specializes in providing a diverse selection of battery sizes and configurations to cater to a wide range of applications. Whether you need standard battery options or have unique power requirements, our team of experienced engineers is here to assist you throughout the entire process of designing, developing, testing, and manufacturing custom battery solutions tailored to your specific needs. Feel free to reach out to us today to learn more about our comprehensive range of battery solutions and how we can create a customized solution for you.
