Product Details
Place of Origin: China
Brand Name: Redway Power
Certification: CE RoHS MSDS
Model Number: PT51200
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Packaging Details: Wooden packing, carton packing
Delivery Time: 20Days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10000PCS/Day
Battery Type: |
LiFePO4 |
Norminal Voltage: |
51.2V |
Capacity: |
184Ah |
Power: |
9.42kWh |
Casing: |
Sheet Metal Case |
Weight: |
80Kg |
Dimensions: |
700*220*458mm |
OEM&ODM: |
Acceptable |
Battery Type: |
LiFePO4 |
Norminal Voltage: |
51.2V |
Capacity: |
184Ah |
Power: |
9.42kWh |
Casing: |
Sheet Metal Case |
Weight: |
80Kg |
Dimensions: |
700*220*458mm |
OEM&ODM: |
Acceptable |

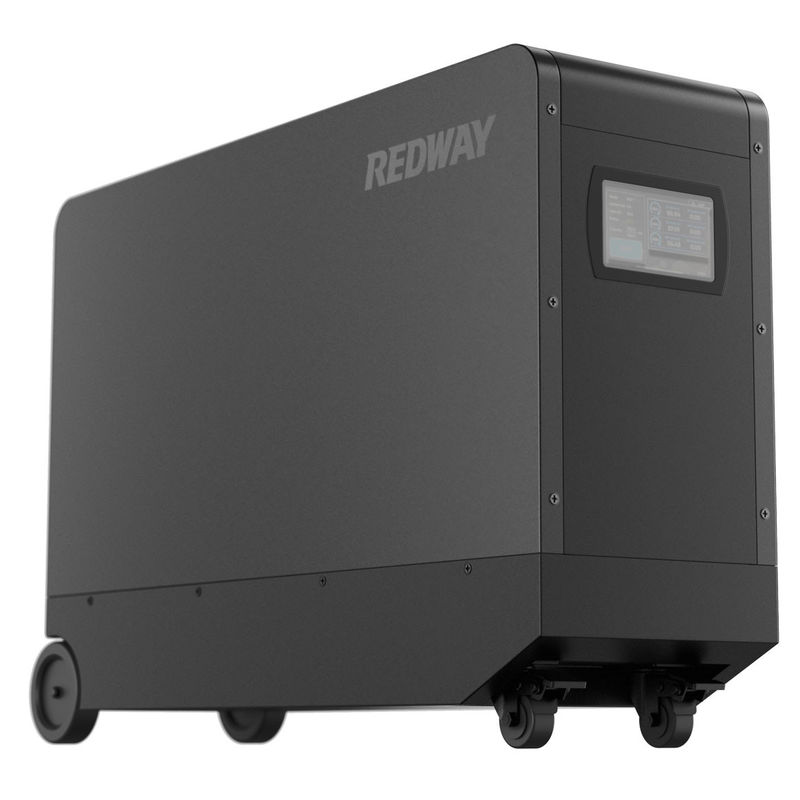

High Energy Density Lithium Cells: The PT51200 utilizes high-energy density lithium cells, providing efficient power storage in a compact size.
Light Weight Compact Design: The battery pack is designed to be lightweight and compact, making it easy to carry and install for various applications.
BMS Super Safety Design: Equipped with a smart Battery Management System (BMS), the PT51200 ensures optimal safety by monitoring and protecting against potential risks such as overcharging, over-discharging, over current, over temperature, and short circuits.
Heavy-Duty Long Cycle Life: The PT51200 offers a long cycle life, capable of enduring numerous charge and discharge cycles without significant capacity loss. This durability reduces the need for frequent replacements and lowers overall costs.
Environment Friendly Pollution-Free: The lithium iron phosphate technology used in the PT51200 is environmentally friendly and pollution-free, making it a sustainable choice for power storage.
High Discharge Rate: The battery pack provides a high discharge rate, allowing for efficient power delivery when needed.
| Cell Type | LiFePO4 |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 184Ah |
| Norminal Energy | 9.42kWh |
| Working Voltage | 40~58.4V |
| Dimension (L*W*H) | 27.56*8.66*18.03in 700*220*458mm |
| Net Weight | 80kg |
| Charging Temp.Range | 0~55°C |
| Discharging Temp.Range | -20~60°C |
| Communication | CAN/RS485 |
| Design Life | 20 Years |
| Cycle Life(25°C@80%DOD) | >8000 Cycles |
| IP Grade | IP21 |
| Color | Gray and white |
| Warranty Document Supplied | Yes |
| Optional Functions | LCD screen, Circuit breaker |
| Compatible Inverters | Victron/SMA/Goodwe/SRNE/Solis/SAJ/Growatt/Luxpower/Voltronic/Deye/etc. |
| Certification & Safety Standard | IEC62619 / CE / UN38.3 |
Why choose us
High Energy Density Lithium Cells: We utilize high-energy density lithium cells in our battery products, ensuring efficient power storage and maximizing the energy capacity in a compact size.
Light Weight Compact Design: Our batteries feature a lightweight and compact design, making them easy to transport, install, and integrate into various applications. The portability of our batteries allows for flexibility and convenience.
BMS Super Safety Design: Our batteries are equipped with a smart Battery Management System (BMS) that ensures optimal safety and performance. The BMS monitors and protects the battery against overcharging, over-discharging, overcurrent, and other potential risks, providing peace of mind and reliable operation.
Heavy-Duty Long Cycle Life: Our batteries are designed for durability and longevity. With a heavy-duty construction and high-quality materials, they can withstand numerous charge and discharge cycles, offering a long cycle life and reducing the need for frequent replacements.
Environmentally Friendly and Pollution-Free: We prioritize environmental sustainability by using technologies and materials that are environmentally friendly and free from harmful pollutants. Our batteries contribute to a cleaner and greener energy solution.
High Discharge Rate: Our batteries are engineered to provide a high discharge rate, delivering power efficiently when it is needed. This feature is particularly beneficial for applications that require quick bursts of energy or high-power output.
Redway Battery specializes in providing a diverse selection of battery sizes and configurations to cater to a wide range of applications. Whether you need standard battery options or have unique power requirements, our team of experienced engineers is here to assist you throughout the entire process of designing, developing, testing, and manufacturing custom battery solutions tailored to your specific needs. Feel free to reach out to us today to learn more about our comprehensive range of battery solutions and how we can create a customized solution for you.
