Product Details
Place of Origin: China
Brand Name: Redway
Certification: CE, UL 1642(Cell), IEC 62133, UN38.3, MSDS
Model Number: RW12250
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Packaging Details: Wooden packing, carton packing
Delivery Time: 15Days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100000PCS/Day
Battery Type: |
LiFePO4 |
Norminal Voltage: |
12.8V |
Capacity: |
250Ah |
Power: |
3200Wh |
Casing: |
ABS |
Weight: |
25Kg |
Dimensions: |
483*170*240mm |
OEM&ODM: |
Acceptable |
Battery Type: |
LiFePO4 |
Norminal Voltage: |
12.8V |
Capacity: |
250Ah |
Power: |
3200Wh |
Casing: |
ABS |
Weight: |
25Kg |
Dimensions: |
483*170*240mm |
OEM&ODM: |
Acceptable |

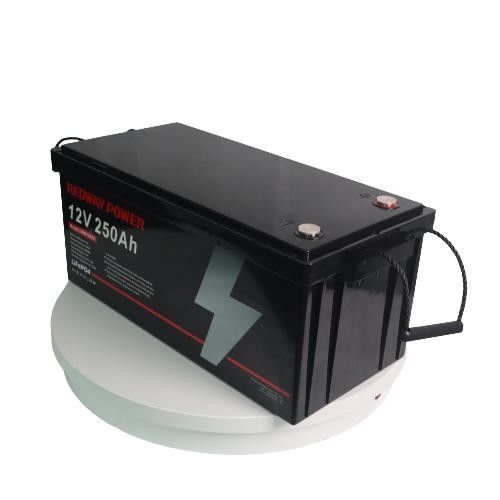

The 12V 250Ah LiFePO4 battery is a customized energy storage solution that provides a high capacity of 250Ah and operates at a nominal voltage of 12V. With its advanced LiFePO4 chemistry, it offers excellent energy density, long cycle life, and enhanced safety features. The battery includes a built-in Battery Management System (BMS) to monitor and control voltage, current, and temperature, ensuring optimal performance and protection against overcharging, over-discharging, and short circuits. This battery is suitable for a wide range of applications, including renewable energy systems, electric vehicles, marine applications, off-grid power systems, and more. Its robust construction and reliable performance make it a dependable power source for demanding applications requiring a high-capacity 12V solution.
| Cell Type: | LiFePO4 (LFP) |
| Nominal Voltage: | 12.8V |
| Nominal Capacity: | 250Ah |
| Norminal Energy: | 3200Wh |
| Dimension (L*W*H): | 483*170*240mm |
| Series / Parallel Number: | 4S1P |
| Maximum Charge Current: | 150A |
| Maximum Discharge Current: | 200A |
| Charge Voltage / Charge Cut-off Voltage |
14.6V |
| Discharge Cut-off Voltage | 10V |
| Terminal | M8 |
| Cycle Life (25°C@80% DOD) | 6000 Cycles |
| Operating Temperature and Humidity Range | Charge: 0~55°C Discharge: -20~60°C |
| Max. Parallel Connection | 4 |
| Protection Level | IP66 |
| Optional Functions: With Bluetooth / Communication / Heating / Active Balance / Switch / LED Screen |
With Bluetooth / Communication / Heating / Active Balance / Switch / LED Screen |
| Warranty: | 3 Years |
Applications
Power Tools: It can provide reliable and long-lasting power for cordless power tools, allowing for extended usage without the need for frequent recharging.
Home Appliances: The battery can be used as a backup power source for home appliances during power outages, ensuring continuous operation of essential devices like refrigerators, lights, and communication systems.
Boats: The battery's high capacity and durability make it suitable for powering electric boats, providing a clean and efficient propulsion system.
Golf Carts: The battery can power electric golf carts, enabling extended range and performance for leisure or transportation purposes on the golf course.
Submarines: The battery's robust construction and reliable performance make it suitable for use in submarines, providing power for various systems and equipment.
Electric Bicycles/Scooters: It can serve as the power source for electric bicycles and scooters, delivering long-range and efficient transportation solutions.
Redway Battery specializes in providing a diverse selection of battery sizes and configurations to cater to a wide range of applications. Whether you need standard battery options or have unique power requirements, our team of experienced engineers is here to assist you throughout the entire process of designing, developing, testing, and manufacturing custom battery solutions tailored to your specific needs. Feel free to reach out to us today to learn more about our comprehensive range of battery solutions and how we can create a customized solution for you.
