Product Details
Place of Origin: China
Brand Name: Redway
Certification: CE, UL 1642(Cell), IEC 62133, UN38.3, MSDS
Model Number: RW12250
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Packaging Details: Wooden packing, carton packing
Delivery Time: 15Days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100000PCS/Day
Battery Type: |
LiFePO4 |
Norminal Voltage: |
12.8V |
Capacity: |
250Ah |
Power: |
3200Wh |
Casing: |
ABS |
Weight: |
25Kg |
Dimensions: |
483*170*240mm |
OEM&ODM: |
Acceptable |
Battery Type: |
LiFePO4 |
Norminal Voltage: |
12.8V |
Capacity: |
250Ah |
Power: |
3200Wh |
Casing: |
ABS |
Weight: |
25Kg |
Dimensions: |
483*170*240mm |
OEM&ODM: |
Acceptable |

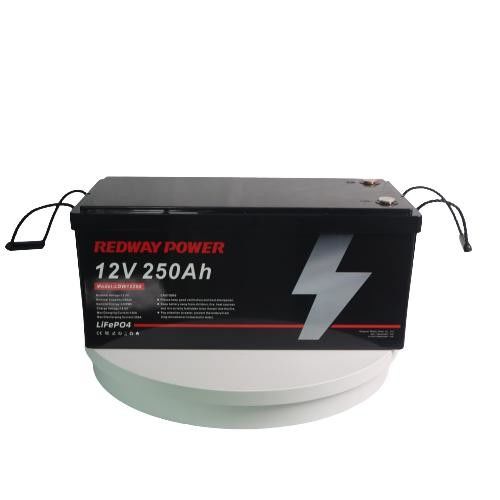

This 12.8V 250Ah lithium battery pack is a durable off-grid energy storage solution suitable for solar home systems, recreational vehicles, electric vehicles, and more. It utilizes advanced lithium iron phosphate chemistry in a 12.8V 250Ah configuration to provide superior performance and safety compared to lead-acid batteries.
With over 3000 charging cycles possible at an 80% depth of discharge, this LiFePO4 battery delivers a long lifespan to keep your critical devices running for many years. An integrated battery management system monitors and balances each cell for consistent performance. Protections against overcharge, over-discharge, overcurrent and short circuits enhance reliability.
Weatherproof casing protects the batteries from moisture and corrosion. Convenient handles allow easy transportation. Together with dustproof and shockproof features, this robust battery pack can withstand varied climate conditions. Its stable open circuit voltage and high efficiency make it an ideal choice to provide uninterrupted power backup for homes, remote facilities and more.
◆ Using the technology of lithium iron phosphate cell, superior safety,thousands of cycles, 100%DOD, under normal conditions.
◆ Built-in automatic protection for over-charge, over discharge, overurrent and over temperature.
◆ Free of maintenance .
◆ Internal cell balancing.
◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
◆ Can be charged using most standard lead-acid charges (set).
| Cell Type: | LiFePO4 (LFP) |
| Nominal Voltage: | 12.8V |
| Nominal Capacity: | 250Ah |
| Norminal Energy: | 3200Wh |
| Dimension (L*W*H): | 483*170*240mm |
| Series / Parallel Number: | 4S1P |
| Maximum Charge Current: | 150A |
| Maximum Discharge Current: | 200A |
| Charge Voltage / Charge Cut-off Voltage |
14.6V |
| Discharge Cut-off Voltage | 10V |
| Terminal | M8 |
| Cycle Life (25°C@80% DOD) | 6000 Cycles |
| Operating Temperature and Humidity Range | Charge: 0~55°C Discharge: -20~60°C |
| Max. Parallel Connection | 4 |
| Protection Level | IP66 |
| Optional Functions: With Bluetooth / Communication / Heating / Active Balance / Switch / LED Screen |
With Bluetooth / Communication / Heating / Active Balance / Switch / LED Screen |
| Warranty: | 3 Years |
Application
Power Tools, Home Appliances, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Folklifts, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
Redway Battery specializes in providing a diverse selection of battery sizes and configurations to cater to a wide range of applications. Whether you need standard battery options or have unique power requirements, our team of experienced engineers is here to assist you throughout the entire process of designing, developing, testing, and manufacturing custom battery solutions tailored to your specific needs. Feel free to reach out to us today to learn more about our comprehensive range of battery solutions and how we can create a customized solution for you.
