Product Details
Place of Origin: China
Brand Name: Redway
Certification: CE, UL 1642(Cell), IEC 62133, UN38.3, MSDS
Model Number: RW12150
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Packaging Details: Wooden case,
Delivery Time: 15Days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100000PCS/Day
Battery Type: |
LiFePO4 |
Norminal Voltage: |
12.8V |
Capacity: |
150Ah |
Power: |
1920Wh |
Casing: |
ABS |
Weight: |
19Kg |
Dimensions: |
395*110*286mm |
OEM&ODM: |
Acceptable |
Battery Type: |
LiFePO4 |
Norminal Voltage: |
12.8V |
Capacity: |
150Ah |
Power: |
1920Wh |
Casing: |
ABS |
Weight: |
19Kg |
Dimensions: |
395*110*286mm |
OEM&ODM: |
Acceptable |

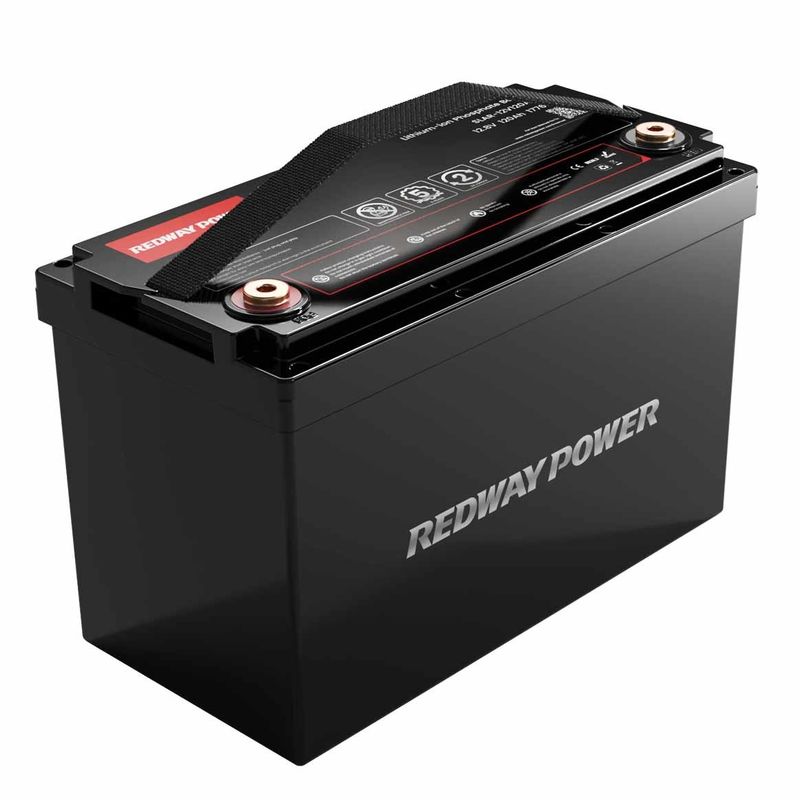

Rechargeable Lithium-ion Lifepo4 12V 150Ah Lithium Battery Deep Cycle Solar Power Battery
◆ Using the technology of lithium iron phosphate cell, superior safety,thousands of cycles, 100%DOD, under normal conditions.
◆ Built-in automatic protection for over-charge, over discharge, overurrent and over temperature.
◆ Free of maintenance .
◆ Internal cell balancing.
◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
◆ Can be charged using most standard lead-acid charges (set).
◆ Wider temperature range:-20℃~60℃.
◆ Support for Series application expansion (up to 51.2V) and two in parallel.
| Cell Type: | LiFePO4 (LFP) |
| Nominal Voltage: | 12.8V |
| Nominal Capacity: | 150Ah |
| Norminal Energy: | 1920Wh |
| Dimension (L*W*H): | 395*110*286mm |
| Series / Parallel Number: | 4S1P |
| Maximum Charge Current: | 50A |
| Maximum Discharge Current: | 100A |
| Charge Voltage / Charge Cut-off Voltage |
14.6V |
| Discharge Cut-off Voltage | 10V |
| Terminal | M8 |
| Cycle Life (25°C@80% DOD) | 6000 Cycles |
| Operating Temperature and Humidity Range | Charge: 0~55°C Discharge: -20~60°C |
| Max. Parallel Connection | 4 |
| Protection Level | IP66 |
| Optional Functions: With Bluetooth / Communication / Heating / Active Balance / Switch / LED Screen |
With Bluetooth / Communication / Heating / Active Balance / Switch / LED Screen |
| Warranty: | 3 Years |
Application
Power Tools, Home Appliances, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Folklifts, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
CUSTOM BATTERY SOLUTIONS
Redway Battery specializes in providing a diverse selection of battery sizes and configurations to cater to a wide range of applications. Whether you need standard battery options or have unique power requirements, our team of experienced engineers is here to assist you throughout the entire process of designing, developing, testing, and manufacturing custom battery solutions tailored to your specific needs. Feel free to reach out to us today to learn more about our comprehensive range of battery solutions and how we can create a customized solution for you.
