Product Details
Place of Origin: China
Brand Name: Redway Power
Certification: CE, UL 1642(Cell), IEC 62133, UN38.3, MSDS
Model Number: EOH Series 48V
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Packaging Details: Wooden packing, carton packing
Delivery Time: 20Days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100000PCS/Day
Battery Type: |
LiFePO4 |
Norminal Voltage: |
51.2V |
Capacity: |
100Ah |
Power: |
5.12KWh |
Casing: |
Sheet Metal |
Weight: |
53Kg |
Dimensions: |
710*450*192mm |
OEM&ODM: |
Acceptable |
Battery Type: |
LiFePO4 |
Norminal Voltage: |
51.2V |
Capacity: |
100Ah |
Power: |
5.12KWh |
Casing: |
Sheet Metal |
Weight: |
53Kg |
Dimensions: |
710*450*192mm |
OEM&ODM: |
Acceptable |

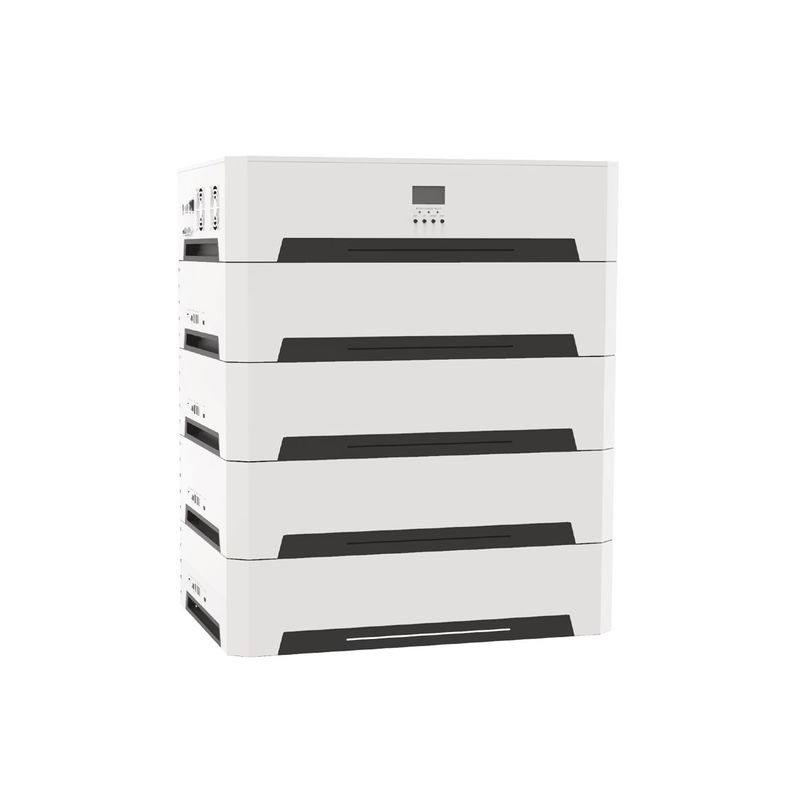

An Energy Storage System (ESS) is a specific type of power system that integrates a power grid connection with an Inverter and battery system. It stores solar energy into your battery during the day, for use later on when the sun stops shining.
It allows for time shifting power, charging from solar, providing grid support, and exporting power back to the grid.
When an ESS system is able to produce more power than it can use and store, it can sell the surplus to the grid; and when it has insufficient energy or power, it automatically buys it from from the grid.
Two main reasons for choosing an energy storage system
1. Say goodbye to high electricity prices
Automatically switch to solar power or saved valley power when national grid prices arehigh.
2. Achieved energy arbitrage
Using the difference between peak and valley electricity prices and selling surplus electricityto the national grid for a profit.
| INVERTER | ||
| Items | EOH48-5.0S-C0 | EOH48-5.0U-C0 |
| Rated AC Output Power | 5,000W | 5,000W |
| Rated AC Output Voltage | 230Vac | 120Vac |
| Rated AC Output Frequency | 50/60Hz | 50/60Hz |
| Max.PV Open Circuit Voltage | 500Vdc | 500Vdc |
| MPPT Voltage Range | 120~450Vdc | 120~450Vdc |
| Max.PV Input Power | 5,000W | 5,000W |
| Num. Of MPPT | 1 | 1 |
| BATTERY | |
| Items | EOH48-5.0A-E0 |
| Battery Energy | 5.12kWh |
| Battery Type | Li-ion |
| Rated Battery Voltage | 51.2V |
| Battery Capacity | 100Ah |
| Constant Charging Current | 100A (1C) |
| Constant Discharging Current | 100A (1C) |
| Depth of Discharging | 80% |
| Parallel Capacity | 1-4 |
| Life-Span 80%DOD | 6000 |
| GENERAL | |
| Installation Method | Horizontal |
| Noise | <60dB |
| Nominal Operation Altitude | <2000m |
| Communication | RS485/CAN/WIFI |
| IP Grade | IP20 |
| Dimension (Inverter) | 710*450*192mm |
| Weight (Inverter) | 27kg (60lb) |
| Dimension (Battery) | 710*450*192mm |
| Weight (Battery) | 53kg (117lb) |
Our advantages
FACTORY
More than 10 years industry experience
QUALITY
Pass relevant quality certification
OEM&ODM
Welcome:Logo/color box/packing...
PRICE
Competitive price: No middle man
DELIVERY
Flexible shipping service on-time delivery
COOPERATION
Many brand customers choose us as a long-term cooperation
Application
Redway Battery specializes in providing a diverse selection of battery sizes and configurations to cater to a wide range of applications. Whether you need standard battery options or have unique power requirements, our team of experienced engineers is here to assist you throughout the entire process of designing, developing, testing, and manufacturing custom battery solutions tailored to your specific needs. Feel free to reach out to us today to learn more about our comprehensive range of battery solutions and how we can create a customized solution for you.
