Product Details
Place of Origin: China
Brand Name: Redway Power
Certification: CE RoHS MSDS
Model Number: PT48200
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Packaging Details: Wooden packing, carton packing
Delivery Time: 20Days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10000PCS/Day
Battery Type: |
LiFePO4 |
Norminal Voltage: |
48V |
Capacity: |
184Ah |
Power: |
8.83kWh |
Casing: |
Sheet Metal Case |
Weight: |
76.5Kg |
Dimensions: |
700*220*458mm |
OEM&ODM: |
Acceptable |
Battery Type: |
LiFePO4 |
Norminal Voltage: |
48V |
Capacity: |
184Ah |
Power: |
8.83kWh |
Casing: |
Sheet Metal Case |
Weight: |
76.5Kg |
Dimensions: |
700*220*458mm |
OEM&ODM: |
Acceptable |

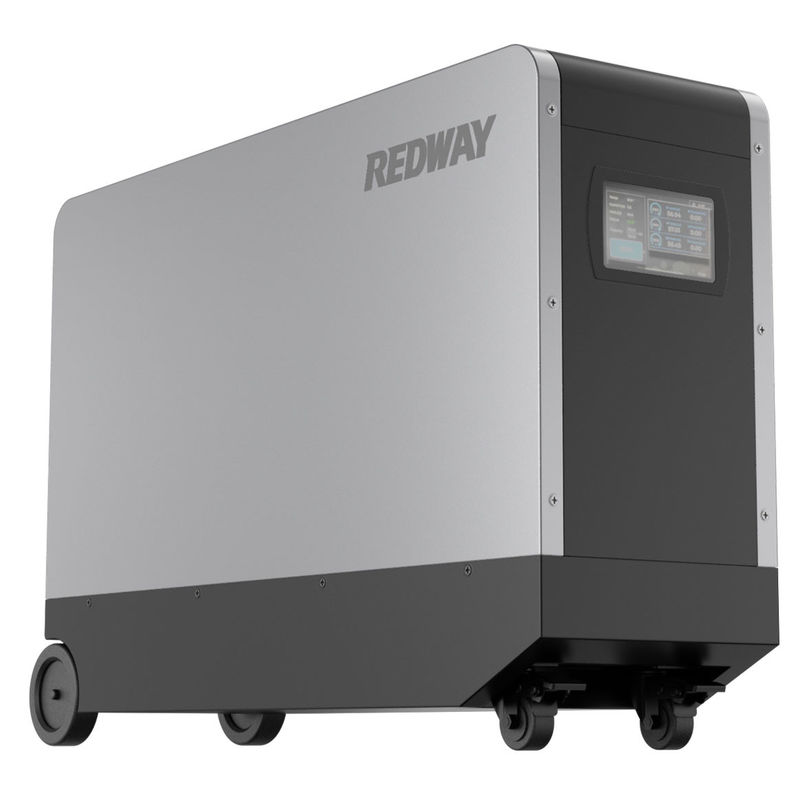

The Power Trolley PT48200 has many advantages over other batteries. Some of the prominent advantages are listed below.
The PT48200 battery technology has several advantages that make it an attractive option for various applications. Its long lifespan of up to ten years means that it can last for a long time without needing to be replaced, which can help reduce costs and minimize waste. Additionally, the battery has a high capacity of 184Ah and a nominal energy of 8.83kWh, making it suitable for a variety of applications such as off-grid homes, emergency backup power, mobile power for RVs and boats, renewable energy storage for solar and wind power systems, and electric vehicle charging stations.
The PT48200 battery has a compact and portable design that makes it easy to install and move. It can be mounted on the wall or placed on the floor, providing flexibility and versatility. The battery is also equipped with a smart BMS (Battery Management System) that monitors and protects the battery against overcharging, over discharging, over current, over temperature, and short circuits, ensuring the safety and reliability of the battery.
Furthermore, the PT48200 battery is compatible with a variety of inverters from top brands such as Victron, SMA, Goodwe, SRNE, Solis, SAJ, and more. This allows users to easily integrate the device into their existing power systems, providing a convenient and efficient power solution. Overall, the PT48200 battery technology offers several advantages that make it a reliable and versatile power source for various applications.
| Cell Type | LiFePO4 |
| Nominal Voltage | 48V |
| Nominal Capacity | 184Ah |
| Norminal Energy | 8.83kWh |
| Working Voltage | 37.5~54.75V |
| Dimension (L*W*H) | 27.56*8.66*18.03in 700*220*458mm |
| Net Weight | 76.5kg |
| Charging Temp.Range | 0~55°C |
| Discharging Temp.Range | -20~60°C |
| Communication | CAN/RS485 |
| Design Life | 20 Years |
| Cycle Life(25°C@80%DOD) | >8000 Cycles |
| IP Grade | IP21 |
| Color | Gray and white |
| Warranty Document Supplied | Yes |
| Optional Functions | LCD screen, Circuit breaker |
| Compatible Inverters | Victron/SMA/Goodwe/SRNE/Solis/SAJ/Growatt/Luxpower/Voltronic/Deye/etc. |
| Certification & Safety Standard | IEC62619 / CE / UN38.3 |
Redway Battery specializes in providing a diverse selection of battery sizes and configurations to cater to a wide range of applications. Whether you need standard battery options or have unique power requirements, our team of experienced engineers is here to assist you throughout the entire process of designing, developing, testing, and manufacturing custom battery solutions tailored to your specific needs. Feel free to reach out to us today to learn more about our comprehensive range of battery solutions and how we can create a customized solution for you.
