Product Details
Place of Origin: China
Brand Name: Redway Power
Certification: CE,UN38.3, MSDS
Model Number: PT 24184
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Packaging Details: Wooden packing, carton packing
Delivery Time: 20Days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10000PCS/Day
Battery Type: |
LiFePO4 |
Norminal Voltage: |
25.6V |
Capacity: |
184Ah |
Power: |
4.71KWh |
Casing: |
Sheet Metal |
Weight: |
40Kg |
Dimensions: |
715*220*302 Mm (28.15*8.66*11.89 Inch) |
OEM&ODM: |
Acceptable |
Battery Type: |
LiFePO4 |
Norminal Voltage: |
25.6V |
Capacity: |
184Ah |
Power: |
4.71KWh |
Casing: |
Sheet Metal |
Weight: |
40Kg |
Dimensions: |
715*220*302 Mm (28.15*8.66*11.89 Inch) |
OEM&ODM: |
Acceptable |

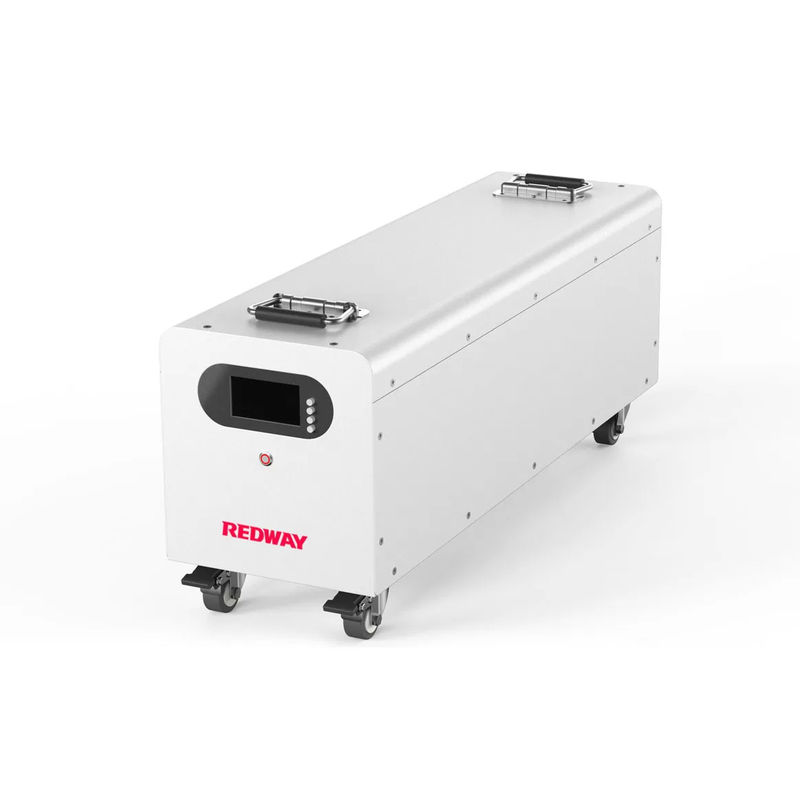

Safe & Reliable 24V 184Ah LiFePO4 Battery for Energy Storage
Features
Portable: The battery is designed with built-in wheels for easy portability.
High Capacity: It offers a large capacity of 184Ah, allowing for extended use.
25.6V Voltage: The battery operates at a voltage of 25.6V, suitable for various applications.
Lithium Technology: It utilizes lithium-ion technology, known for its efficiency and reliability.
Versatile: The battery can be used for diverse applications, providing power on the go.
Long-lasting: It has a long service life, providing reliable performance over time.
Convenient Charging: The battery can be easily recharged for continued use.
Suitable for Outdoor Use: With its wheels, the battery is ideal for outdoor activities and mobile power needs.
| Items | Specification |
|---|---|
| Cell Type | LiFePO4 (Customizable: LiFePO4 / NCM / Prismatic / Cylindrical) |
| Nominal Voltage | 25.6V |
| Battery Capacity | 184Ah |
| Nominal Energy | 4.71kWh (4710.4Wh) |
| Dimension [L*W*H] | 715*220*302 mm (28.15*8.66*11.89 inch) (Customizable Dimension) |
| Weight | ≈40kg (88.18 lbs) |
| Working Voltage | 20V~29.2V |
| Charge Voltage | 29.2V |
| Discharge Cut-off Voltage | 20V |
| Maximum Charge Current | 180A Continuous |
| Maximum Discharge Current | 180A Continuous |
| Fast Charging | Supports Fast Charging |
| Charging Temperature | 0~55°C (32℉~131℉) |
| Discharging Temperature | -20~60°C (-4℉~140℉) |
| Operating Humidity Range | <30% |
| Series/Parallel Number | 8S1P |
| Max. Parallel Connection | 16 |
| Cycle Life (25°C / 77℉@60% DOD) | >8000 Cycles |
| Cycle Life (25°C / 77℉@80% DOD) | >6000 Cycles |
| Self-Discharge Rate | <3% per month (25°C / 77℉) |
| IP Grade | IP21 (Higher grade optional) |
| Battery Case | Steel |
| Battery Base Wheels | 4 |
| Monitoring & Protection | Smart BMS: Overcharge / OverDischarge / Overcurrent / OverTemperature / ShortCircuit |
| Communication | RS485 / CAN |
| Optional Functions | Bluetooth / WiFi / Circuit Breaker / Heating / Active Balance / LED Touch Screen / APP |
| Accessories | Inverter Power Cable, Parallel Cable, Communication Cable, Grounding Wire |
| Compatible Inverters | Victron / GOODWE / Solis / Growatt / SMA / SAJ / Luxpower / SRNE / Deye / Voltronic, etc. |
| Color | White / Gray / Black |
| Design Life | 20 Years |
| Warranty | 5 Years |
| User Manual | With the Battery Packaging |
| Certification & Safety Standard | UL / FCC / CE / IEC / RoHS / UN38.3 / MSDS |
Advantages of lithium batteries over lead-acid batteries
Higher charging efficiency: Lithium batteries have higher charging efficiency, converting electrical energy into stored energy more effectively compared to lead-acid batteries.
Solid electrolyte: Lithium batteries use solid or gel electrolytes, whereas lead-acid batteries use liquid electrolytes, making lithium batteries safer, more stable, and leak-proof.
High energy density: Lithium batteries have higher energy density, meaning they can store more energy in the same size or weight, providing longer runtimes.
Longer lifespan: Lithium batteries have a longer lifespan, allowing for more charge-discharge cycles without significant capacity loss.
Lightweight: Lithium batteries are lighter compared to lead-acid batteries, making them advantageous in applications that require reduced weight.
Fast charging: Lithium batteries offer fast charging capabilities, enabling quicker recharge times compared to lead-acid batteries.
Application
Redway Battery specializes in providing a diverse selection of battery sizes and configurations to cater to a wide range of applications. Whether you need standard battery options or have unique power requirements, our team of experienced engineers is here to assist you throughout the entire process of designing, developing, testing, and manufacturing custom battery solutions tailored to your specific needs. Feel free to reach out to us today to learn more about our comprehensive range of battery solutions and how we can create a customized solution for you.
