Product Details
Place of Origin: China
Brand Name: Redway
Certification: CE, UN38.3, MSDS
Model Number: RWP4815
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Packaging Details: Wooden packing, carton packing
Delivery Time: 15Days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100000PCS/Day
Battery Type: |
Li-ion |
Norminal Voltage: |
48V |
Capacity: |
15Ah |
Power: |
720Wh |
Weight: |
4.6Kg |
Dimensions: |
183*156*159mm |
OEM&ODM: |
Acceptable |
Battery Type: |
Li-ion |
Norminal Voltage: |
48V |
Capacity: |
15Ah |
Power: |
720Wh |
Weight: |
4.6Kg |
Dimensions: |
183*156*159mm |
OEM&ODM: |
Acceptable |

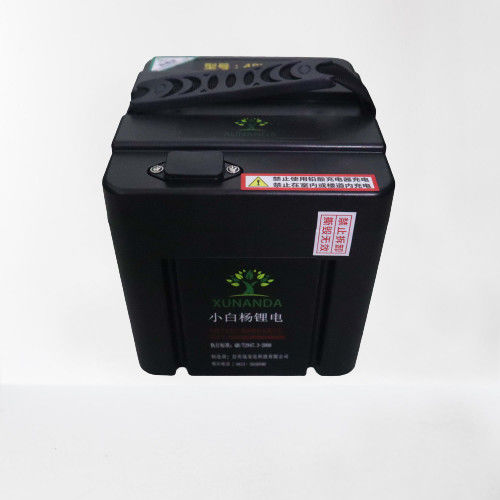

High Performance 48V Li-ion Battery with BMS for Electric Motorcycle
Redway Battery 24V36V48V72V EBike Li-ion Battery Series is high safety Li-ion Battery with high rates and energy density.
This 1500 times deep cycle lithium-ion battery can featuring long service life,
widely used for eBike, Electric Scooter, Electric Motocycle.
We use high quality lithium batteries to ensure that our eBike lithium. Batteries have a DOD80% of more than 1500 cycles of excellent performance. This can meet the quality requirements of many European customers, and our battery products are very cost-effective.
Features
INCREASE YOUR E-BIKE PERFORMANCE
ln cold weather, the thickened type shell can slow down the temperature loss rate inside the redway ll-ion battery, thereby increaslng the cruising range.
LONGER LIFE
Redway eBike li ion batteries provide 80% of rated capacity after 1,500 cycles.
HIGH DISCHARGE EFFICIENCY
Redway eBike ion battery can work at a temperature of -20℃ to 60℃ and the discharge efficiency can reach 96%. Take full advantage of the battery and the distance is longer. The battery self-discharge rate does not exceed 1.5%. It can save attery power.
BMS PROTECTION
Built-in Smart BMS protective board that protects the battery from overcharging, over-discharging, over-voltage, over-current, short circuit and temperature protection to ensure the safety of every customer.
| Cell Type: | Li-ion |
| Nominal Voltage: | 48V |
| Nominal Capacity: | 15Ah |
| Norminal Energy: | 720Wh |
| Dimension (L*W*H) | 183*156*159mm |
| Series / Parallel Number: | 13S1P |
| Charge Voltage / Charge Cut-off Voltage |
54.6V |
| Discharge Cut-off Voltage | 39V |
| Cycle Life (25°C@80% DOD) | 1500 Cycles |
| Operating Temperature and Humidity Range | Charge: 0~45°C Discharge: -10~60°C |
| Norminal working current | 20A |
| Maximum continous working current | 30A |
| Warranty: | 1 Years |
Applications
1. Various electric vehicles:e-motorcycle, e-bike, e-scooter, golf cart, e-wheelchair;
2. Small medical equipment and portable equipment, robot, etc.
Redway Battery specializes in providing a diverse selection of battery sizes and configurations to cater to a wide range of applications. Whether you need standard battery options or have unique power requirements, our team of experienced engineers is here to assist you throughout the entire process of designing, developing, testing, and manufacturing custom battery solutions tailored to your specific needs. Feel free to reach out to us today to learn more about our comprehensive range of battery solutions and how we can create a customized solution for you.
