Product Details
Place of Origin: China
Brand Name: Redway
Certification: CE, UL 1642(Cell), IEC 62133, UN38.3, MSDS
Model Number: PR-LV51100-3U
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Packaging Details: Wooden case
Delivery Time: 25Days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1000PCS/Month
Battery Type: |
LiFePO4 |
Casing: |
Sheet Metal Case |
Norminal Voltage: |
51.2V |
Capacity: |
100Ah |
Weight: |
42Kg |
Dimensions: |
440 X 420 X 134 Mm |
OEM & ODM: |
Acceptable |
Battery Type: |
LiFePO4 |
Casing: |
Sheet Metal Case |
Norminal Voltage: |
51.2V |
Capacity: |
100Ah |
Weight: |
42Kg |
Dimensions: |
440 X 420 X 134 Mm |
OEM & ODM: |
Acceptable |

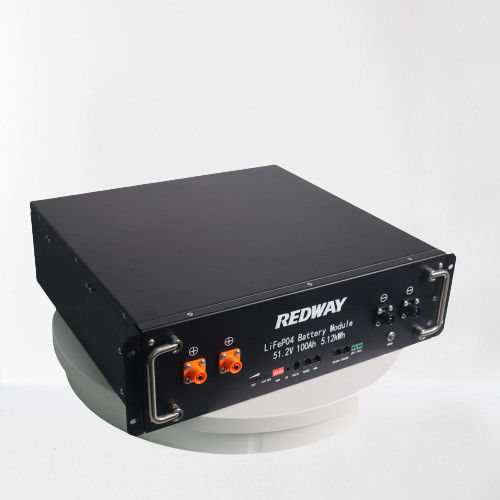

51.2v 5Kwh deep cycle rechargeable lithium ion battery lifepo4 16S 51.2v 100ah hybrid solar storage battery
PR-LV51100-3U
Rack Battery System
Introducing Redway Power Modular Battery series with state of the art modular solutions in terms of Energy and Output Power. RP modular series comes with 6,000 cycle life, built in BMS for each module and cell level monitoring and balancing.
Features
Energy Storage Capacity: The battery has a total energy storage capacity of 5 kilowatt-hours (kWh), which represents the amount of energy it can store and deliver.
Voltage: The nominal voltage of the battery pack is 51.2V. In a 16S configuration, each cell typically has a nominal voltage of 3.2V (16 x 3.2V = 51.2V). The higher voltage is suitable for applications that require a 51.2V power source.
Capacity: The battery has a capacity of 100Ah, which indicates the amount of charge it can store. This capacity determines the energy it can deliver and the duration it can power a load. In practical terms, a 100Ah battery can deliver a continuous current of 100 amps for one hour.
LiFePO4 Chemistry: The battery utilizes lithium iron phosphate (LiFePO4) chemistry as the cathode material. LiFePO4 batteries are known for their excellent safety profile, long cycle life, and good thermal stability. They are commonly used in deep cycle applications, such as renewable energy storage systems, off-grid power solutions, and electric vehicle applications.
Deep Cycle: Deep cycle batteries are designed to discharge a significant portion of their capacity (typically up to 80%) before recharging. They are optimized to withstand repeated deep discharges and provide sustained power over extended periods. This makes them suitable for applications that require frequent and deep cycling, such as renewable energy storage systems.
Model |
|
|
|
|
|---|---|---|---|---|
| Cell Type | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 |
| Nominal Voltage | 48 V | 51.2 V | 48 V | 51.2 V |
| Nominal Capacity | 50 Ah | 50 Ah | 100 Ah | 100 Ah |
| Series/Parallel Number | 15S1P | 16S1P | 15S1P | 16S1P |
| Dimension (L*W*H) | 440 x 410 x 88.5 mm 17.32 x 16.14 x 3.48 in |
440 x 410 x 88.5 mm 17.32 x 16.14 x 3.48 in |
440 x 420 x 134 mm 17.32 x 16.53 x 5.28 in |
440 x 420 x 134 mm 17.32 x 16.53 x 5.28 in |
| Approx. Net Weight | 22 Kg | 23 Kg | 40 Kg | 42 Kg |
| Working Voltage | 37.5 ~ 54.75 V | 40 ~ 58.4 V | 37.5 ~ 54.75 V | 40 ~ 58.4 V |
| Charge Voltage / Charge Cut-off Voltage | 54.75 V | 58.4 V | 54.75 V | 58.4 V |
| Discharge Cut-off Voltage | 37.5 V | 40 V | 37.5 V | 40 V |
| Maximum Charge Current | 0.5 C / 25 A | 0.5 C / 25 A | 0.5 C / 50 A | 0.5 C / 50 A |
| Maximum Discharge Current | 1 C /50 A | 1 C /50 A | 1 C /100 A | 1 C /100 A |
| Standard Charging/Discharging Current | 25 A | 25 A | 50 A | 50 A |
| Maximum Charging/Discharging Current | 50 A | 50 A | 110 A | 110 A |
| Charging Temp.Range | 0℃~55℃ | 0℃~55℃ | 0℃~55℃ | 0℃~55℃ |
| Discharging Temp.Range | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ |
| Cycle Life (25℃@50% DOD, 0.2C) | 6000 times | 6000 times | 6000 times | 6000 times |
| Cycle Life (25℃@80% DOD, 0.2C) | 4000 times | 4000 times | 4000 times | 4000 times |
| Max. Parallel Connection | Up to 16 units | Up to 16 units | Up to 16 units | Up to 16 units |
| Communication | CAN/RS485 | CAN/RS485 | CAN/RS485 | CAN/RS485 |
| Ingress Protection | IP21 | IP21 | IP21 | IP21 |
| Design Life | 10 years | 10 years | 10 years | 10 years |
| Monitoring & Protection | Bulit-in smart BMS | Bulit-in smart BMS | Bulit-in smart BMS | Bulit-in smart BMS |
| Pros | Support off-grid and hybrid working mode, compact design, wall and floor type |
Support off-grid and hybrid working mode, compact design, wall and floor type |
Support off-grid and hybrid working mode, compact design, wall and floor type |
Support off-grid and hybrid working mode, compact design, wall and floor type |
| Compatible Inverters | Victron / SMA / Goodwe / Solis / SAJ / Growatt / Luxpower / SRNE / Voltronic / Deye etc. |
Victron / SMA / Goodwe / Solis / SAJ / Growatt / Luxpower / SRNE / Voltronic / Deye etc. |
Victron / SMA / Goodwe / Solis / SAJ / Growatt / Luxpower / SRNE / Voltronic / Deye etc. |
Victron / SMA / Goodwe / Solis / SAJ / Growatt / Luxpower / SRNE / Voltronic / Deye etc. |
| Alarms | Overcharge / Overdischarge / Overcurrent / Over Temperature / Short Circuit |
Overcharge / Overdischarge / Overcurrent / Over Temperature / Short Circuit |
Overcharge / Overdischarge / Overcurrent / Over Temperature / Short Circuit |
Overcharge / Overdischarge / Overcurrent / Over Temperature / Short Circuit |
| Warranty Document Supplied | Yes | Yes | Yes | Yes |
| Certification & Safety Standard | CE / UN38.3 | CE / UN38.3 | CE / UN38.3 | CE / UN38.3 |
| Optional Functions | LCD Screen, Circuit Breaker | LCD Screen, Circuit Breaker | LCD Screen, Circuit Breaker | LCD Screen, Circuit Breaker |
- The Internal Structure -
Redway Battery specializes in providing a diverse selection of battery sizes and configurations to cater to a wide range of applications. Whether you need standard battery options or have unique power requirements, our team of experienced engineers is here to assist you throughout the entire process of designing, developing, testing, and manufacturing custom battery solutions tailored to your specific needs. Feel free to reach out to us today to learn more about our comprehensive range of battery solutions and how we can create a customized solution for you.
